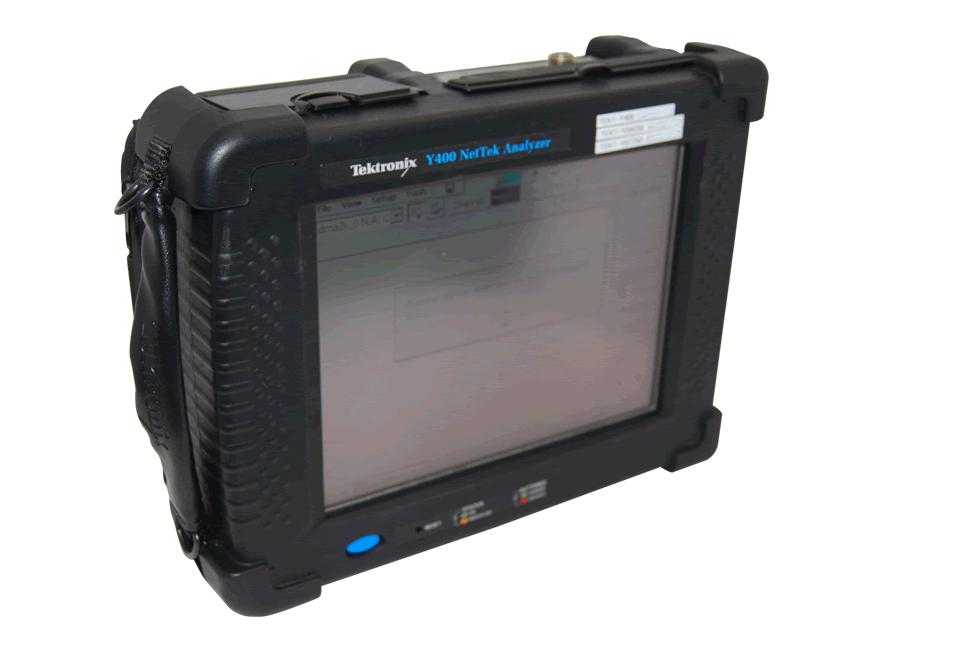

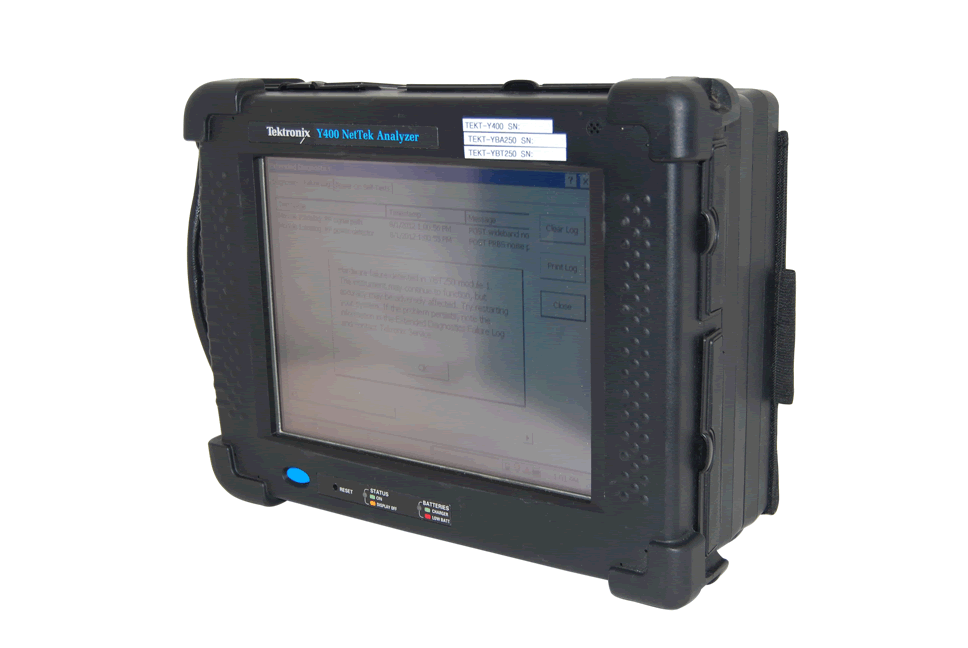

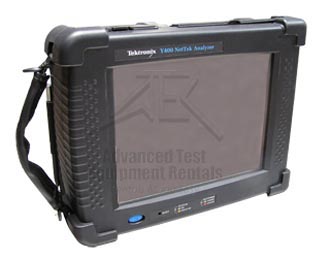

Tektronix Y400 NetTek Analyzer

Tektronix Y400 NetTek Analyzer
Enlarge Image
Tektronix Y400 NetTek Analyzer Tektronix Y400 NetTek Analyzer Tektronix Y400 NetTek Analyzer
Tektronix Test Equipment Y400
Request Quote Print Page
Datasheet

The Tektronix Y400 NetTek analyzer is a portable field tool. When combined with various test modules, the NetTek offers proven measurement capability in a rugged, easy-to-use package, suitable for all field environments.

Applications:

  • Base Station Transmitter Analysis
  • Resolve Interference Problems
  • Troubleshooting of T1 Circuits
  • Base Station Antenna and Transmission Line Analysis


Features:

  • Modules Allow for Easy Future Expansion for New Functions
  • Familiar Windows CE Interface with Touch Screen Design
  • Develop and Run Customized Procedures for Consistent Repeatable Testing
  • User-changeable Battery Packs with Optional External Charger for Uninterrupted Use
  • Rugged, Light Weight, Easy to Use Anywhere


Characteristics:

Module Support
Connect up to 4 test modules
Field interchangeable
Additional mini-test modules supported on PCMCIA
Display
26 cm (10.4 in.), 640 x 480 pixel, transmissive color LCD
Touch screen display optimized for finger use - does not require special scribes or other tools to operate
Power
AC power: AC: 90 to 264 VAC, 47 to 63 Hz
DC power: 24 VDC ±1.2 VDC, 72 W maximum
One Li-Ion battery standard
Measurement operation time on battery: >2 hours per battery, >4 hours typical usage.
Can hold two batteries (second battery optional) for total of >4 hours of continuous measurement; >8 hours typical usage.
Recharge time (non-operating): 4.5 hours
Interface Ports
RS-232 serial: 9-pin, up to 115.2 kb/s serial
USB: 1.1 compatible Master & Slave Ports
Keyboard: PS/2 compatible, Mini-DIN connector
Microphone jack: 3.5 mm jack for external microphone
Headphone jack: 3.5 mm jack for external headphone
Built-in speaker
PCMCIA: 2 PCMCIA type II ports
Ethernet Port: Compatible 10Mb
File/Test Storage
Internal memory (standard): 32 MB available for storage and running Windows CE applications
USB Floppy disk (optional): MS-DOS compatible 3.5", 1.4 MB
PCMCIA Memory card (optional): 128 MB
Port supports standard PCMCIA memory cards
