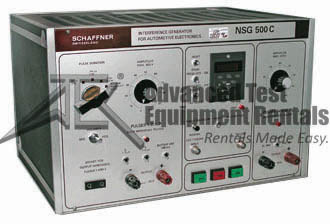

- Pulse 1
- Peak Voltage: -30 to -300 V
- Risetime: 1 / 2 / 3 / 4 µs
- Pulse width: 50 / 200 µs / 2 ms
- Repetition rate: 0.5 / 5 s
- Selectable Battery Off time: 200 ms
- Source Impedance: 4 / 10 / 20 / 30 / 40 / 50 ohms
- Pulse 2
- Peak Voltage: +30 to +300 V
- Risetime: 1 / 2 / 3 / 4 µs
- Pulse width: 50 / 200 µs / 2 ms
- Repetition rate: 0.5 / 5 s
- Selectable Battery Off time: 200 ms
- Source Impedance: 4 / 10 / 20 / 30 / 40 / 50 ohms
- Pulses 3a/3b
- Peak Voltage: +-40 to +-200 V
- Risetime: 5 ns
- Pulse width: 100 ns
- Repetition rate: 100 µs
- Burst Length: 10 ms
- Time between burst groups: 90 ms
- Source Impedance: 50 ohms
- Operating Modes:
- Single pulses or bursts
- Manual or external triggering
- Repetitive pulses or bursts
- Repetition frequency according to pulse type
- Test Duration: Settable with built-in preselection counter for defined time or number of pulses: 1 - 999999 secs or 1 - 999999 pulses
- External Trigger: TTL input. 0=true; also suitable for a momentary push-button
- CRO Trigger: trigger output + 10V, Tr 1.5µs
- DUT Supply Voltage: 12 - 30 Vdc
- DUT Supply Current: 25A max. (circuit breaker)
- DUT Connection: Universal connector sockets
- Weight: 16 - 20 kg (35-44 lbs) approx.
The two-part Generator, Type NSG506C, has been designed as an auxiliary unit for the NSG500C and enables the production of high energy pulses (pulses 5 and 7).
- Pulse 5
- Peak Voltage: 0 to +200 V
- Risetime: 0.1 / > 5 <10 ms
- Pulse width: 40 / 100 / 150 / 200 / 300 / 350 / 400 / 500 ms
- Source Impedance: 0.5 to 5.5 ohms
- Pulse 7
- Peak Voltage: 0 to -200 V
- Risetime: 0.1 / > 5 <10 ms
- Source Impedance: 8.5 to 13.5 ohms
- Storage Capacitor: 47 000µF
- Energy: 940 Joule max.
- Pulse Triggering: controlled via the NSG500C; manual; external trigger; automatic (pulse interval 5 secs)
- Pulse Interval: 5 secs min.
- Weight: 36 kg approx. (79 lbs) (part 1 and 2)
