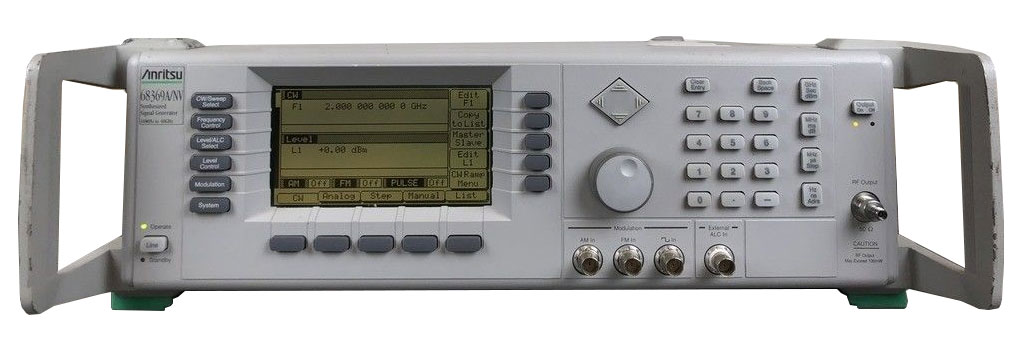

Anritsu 68369A/NV Synthesized Sweep Generator

Rent, Buy, or Lease the Anritsu 68369A/NV Synthesized Sweep Generator - Advanced Test Equipment Rentals | Call 1-800-404-ATEC(2832) for pricing…
Enlarge Image
Request Quote Print Page
Datasheet

The Anritsu 68369A/NV signal generator is an electronic instrument that generates repeating electronic signals. It contains an electronic oscillator, a circuit that is capable of creating a repetitive waveform.


Features:


  • Perfect as a Local Oscillator, for Component Analysis or in A.T.E.
  • Ultra-low SSB Phase Noise; -100dBc at 10KHz offset from 10GHz
  • 10MHz to 40GHz Frequency Coverage in a Single Coaxial Output
  • Analog, Step and Manual Sweep Capability
  • -125dBm to +17dBm Output Power Range
  • User Level Flatness Correction
  • Internal AM, FM, Phase and Pulse Modulation
  • 7 Modulating Waveforms
  • User Downloadable Complex Modulation
  • 10 Setup Non-Volatile Storage
  • Master/Slave Operation with Additional Generator

The Anritsu 68369A/NV is delivered with:

  • 68367C Base Model
  • Option 6800B/2B 10dB/step Step Attenuator
  • Option 6800B/11: Provides frequency resolution of 0.1Hz
  • Accessory 34RKNF50 Precision Adapter, DC to 20GHz, 50Ω, Ruggedized K(m)-N,(f)
  • Operation Manual (Hard Copy & CD-ROM)
  • Service Manual (Hard Copy & CD-ROM)
  • Assembly Level Manual (Hard Copy & CD-ROM)
