Anritsu 68369C RF Signal Generator | 10MHz - 40GHz

Discontinued

The Anritsu 68369C is Discontinued

View the Anritsu MG3694C

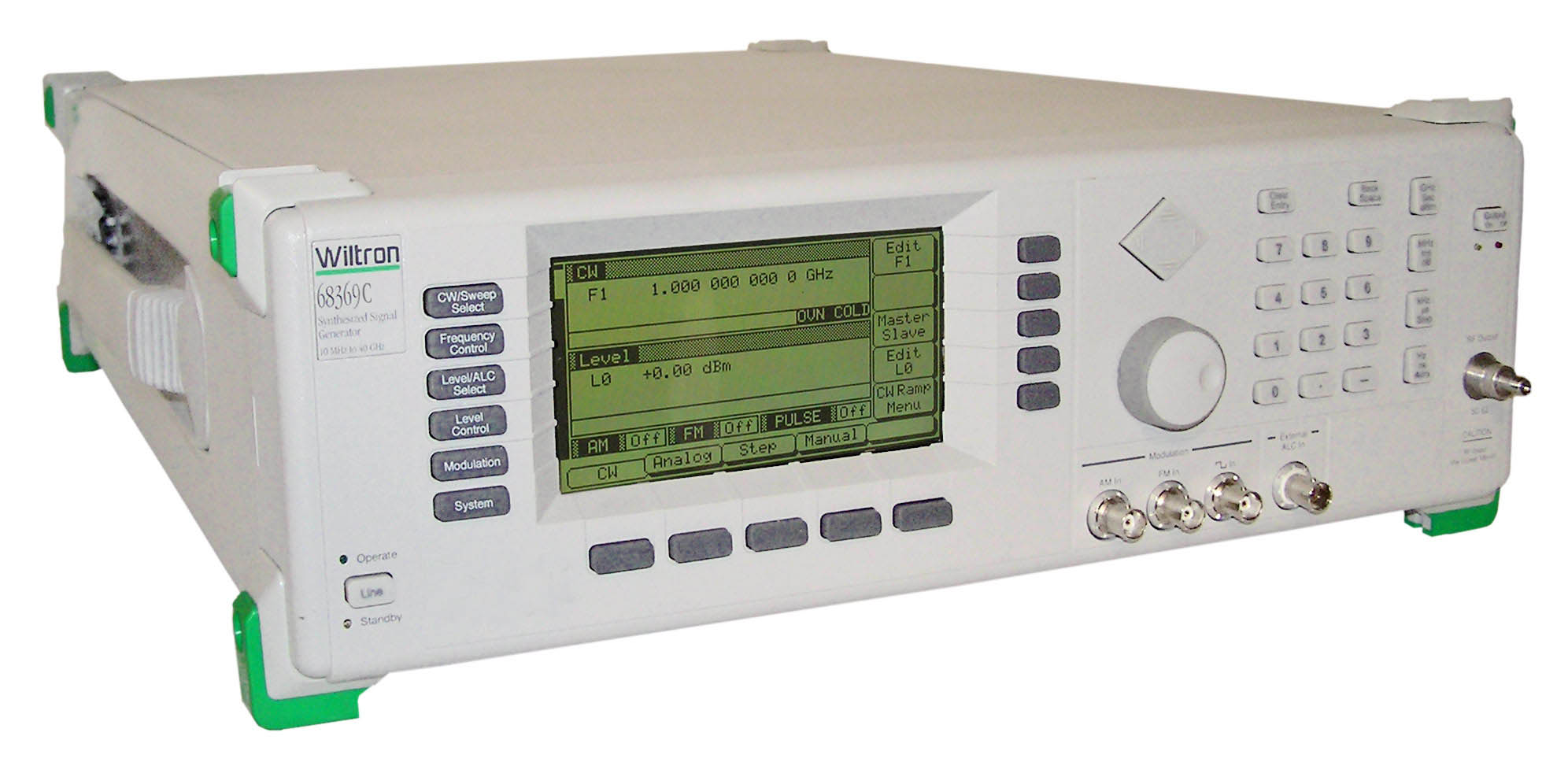

The Anritsu 68369C Synthesized Signal Generator is a sweep generator with a broad frequency range of 10 MHz to 40 GHz in a single coax output. Anritsu 68369C signal generators perform fast analog sweeps, with external FM locked or unlocked and external AM log or linear operation. Output power is accurately leveled to 120 dB in .01 steps, facilitating receiver sensitivity measurements, and a quick 5 ms switching time maximizes the system throughput. External modulation allows for network analysis and A.T.E. applications. To minimize rack space, Anritsu 68369C units fit in a single 13.3 cm package.

Product Info Related Products

Parameter	Value
Output	Twenty independent, presettable CW frequencies (F0 – F9 and M0 – M9)
Accuracy	Same as internal or external 10 MHz time base
Internal Time Base Stability	With Aging: < 2 x 10-8/day (<5 x 10–10/day with Option 16) With Temperature: < 2 x 10-8/°C over 0°C to 55°C (<2 x 10-10/°C with Option 16)
Resolution	1 kHz (0.1 Hz with Option 11)
External 10 MHz Reference Input	Accepts external 10 MHz ±100 Hz, –10 to +20 dBm time base signal. Automatically disconnects the internal high-stability time-base option, if installed BNC, rear panel, 50 Ω impedance
10 MHz Reference Output	0 dBm into 50 Ω, AC coupled, from rear panel BNC connector
Switching Time (Typical Maximum)	Units with maximum frequency ≥ 20 GHz: <40 ms to be within 1 kHz of final frequency Units with maximum frequency of 8.4 GHz: < 15 ms to within 1 kHz of final frequency
Analog Sweep Mode Width	Independently selected from 1 MHz to full frequency range
Analog Sweep Mode Accuracy	The lesser of ±30 MHz or (±2 MHz + 0.25% of sweep width) for sweep speeds of ≤50 MHz/ms
