Haefely MFS 100 Frequency Pulse Magnetic Field Test System


Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Rent Haefely MFS 100 Frequency Pulse Magnetic Field Test System
Enlarge Image

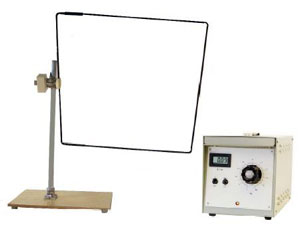

Haefely MFS 100
Request Quote Print Page
MFS 100 Datasheet
The Haefely MFS 100 Power Frequency and Pulse Magnetic Field Test System can be used to test power frequency magnetic fields according to IEC/EN 61000-4-8 and pulse magnetic field according to IEC/EN 61000-4-9.

The MFS 100 is an accessory to either the PSURGE 4010, PSURGE 8000 with PIM 100 surge generators, or the ECOMPACT 4. It enables magnetic field testing up to 1200 A/m.

Haefely MFS 100 Features
  • Up to 1200A/m field strength for pulse magnetic field.
  • Up to 100A/m field strength for frequency magnetic field.
  • Standard coil designed for major application as defined in the IEC document.
  • Sturdy construction.
  • Horizontal and vertical testing possible.
  • Supplied to ISO 9001.
Haefely MFS 100 Standards
