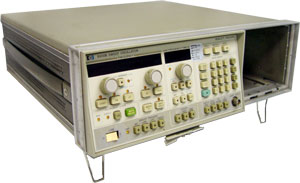

HP/Agilent 8350B RF/Microwave Sweep Oscillator
Enlarge Image
Keysight 8350B
Request Quote Print Page
Manual Specifications Supplemental Document
The Keysight 8350B Sweep Oscillator is a powerful general-purpose source for swept microwave measurements, CW signal generations and automatic testing and provides a frequency range of 10 MHz to 40 GHz. Combine the 8350B mainframe with any of the 11 versatile Keysight 83500 Series RF plug-ins to configure a source that meets your frequency and power requirements. The 8350 mainframe includes many productivity features, such as five independent, continuously variable markers, a marker sweep function, and save/recall registers that provide quick access to nine complete front panel settings.

RF Plug-Ins (Sample Only): 0.01 to 50 GHz
83522A: 0.01 - 2.4 GHz
83545A: 5.9 - 12.4 GHz
83572A: 26.5 - 40 GHz
83592A: 0.01 - 20 GHz
83596A: 2.4 - 40 GHz
Keysight 8350B Specs
  • Versatile microprocessor-controlled mainframe
  • Single-band, straddle-band, and broadband plug-ins
  • 10 MHz to 50 GHz from a single plug-in
  • 13 dBm output power to 26.5 GHz


  • Frequency Control Modes: Start, stop, sweep, CF/DF, CW, and frequency offset
  • Modulation Characteristics
    • External AM
    • Internal Square-Wave Modulation: 1 kHz or 27.8 kHz
    • External Pulse Modulation
    • External FM
    • Minimum Sweep Time - Single band: 10ms
