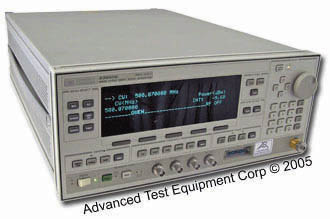

The Agilent 83650B combines the excellent frequency resolution, level control, signal purity, and modulation capabilities you expect of a high-performance synthesized signal generator with the speed and convenience of a sweep oscillator. It is ideal for the demanding requirements of signal simulation, local oscillator, and stimulus/response component or subsystem test applications.
Features:
-
+2.5 dBm calibrated output power
-
-50 dBc harmonics <26.5 GHz typical
-
SSB phase noise <-80 dBc at 10 GHz and 10 kHz offset
-
Complete analog sweeper
-
Option 001: -110 dBm output power with step attenuator Maximum leveled output power is reduced by 1.5 dB to 20 GHz, 2 dB above 20 GHz, and 2.5 dB above 40 GHz. (please consult your sales representative on availability)
Specifications:
|
Frequency |
|
Range |
10 MHz to 50 GHz |
|
Resolution |
1 kHz (1 Hz with Option 008) |
|
Internal Reference Oscillator |
|
Frequency |
10 MHz |
|
Time base Stability |
Aging Rate: 5 x 1010/day; 1 x 10 7/year |
|
Temperature Effects |
1 x 10 10/°C |
|
Line Voltage Effects |
5 x 10 10 (10°C change in voltage) |
|
CW and Manual Modes |
|
Accuracy |
Time base stability xfc |
|
Switching Time |
For Steps Within a Frequency Band: 15 ms + 5 ms/GHz step size |
|
Maximum, or Across Band Switch Points: 50 ms |
|
Step or List Modes Within a Frequency Band: 5 ms + 5 ms/GHz step size
|
|
Step Sweep Mode |
|
Accuracy |
Time base stability xfc |
|
Minimum Step Size |
Same as frequency resolution |
|
Number of Points |
2 to 801 |
|
Switching Time |
Same as CW |
|
Dwell Time |
100 µs to 3.2s |
