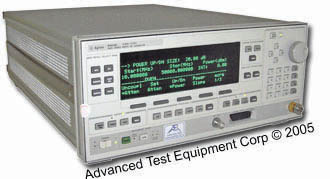

HP Agilent 83650L Synthesized Swept-CW Generator
Enlarge Image
Keysight 83650L
Request Quote Print Page
Manual 83650L Datasheet Specifications
The Keysight 83650L combines the excellent frequency resolution, level control, signal purity, and modulation capabilities you expect of a high-performance synthesized signal generator with the speed and convenience of a sweep oscillator. It is ideal for the demanding requirements of signal simulation, local oscillator, and stimulus/response component or subsystem test applications.

Keysight 83650L Features
  • +2.5 dBm calibrated output power
  • -50 dBc harmonics <26.5 GHz typical
  • SSB phase noise <-80 dBc at 10 GHz and 10 kHz offset
  • Complete analog sweeper
  • -110 dBm output power with step attenuator (Option 001, please consult your sales representative on availability)
Keysight 83650L Specs
Frequency
Range 10 MHz to 50 GHz
Resolution 1 kHz (1 Hz with Option 008)
Internal Reference Oscillator
Frequency 10 MHz
Timebase Stability Aging Rate: 5 x 1010/day; 1 x 10 7/year
Temperature Effects 1 x 10 10/°C
Line Voltage Effects 5 x 10 10 (10°C change in voltage)
CW and Manual Modes
Accuracy Timebase stability xfc
Switching Time For Steps Within a Frequency Band: 15 ms + 5 ms/GHz step size
Maximum, or Across Band Switch Points: 50 ms

Step or List Modes Within a Frequency Band: 5 ms + 5 ms/GHzstep size

Step Sweep Mode
Accuracy Timebase stability xfc
Minimum Step Size Same as frequency resolution
Number of Points 2 to 801
Switching Time Same as CW
Dwell Time 100 µs to 3.2s
