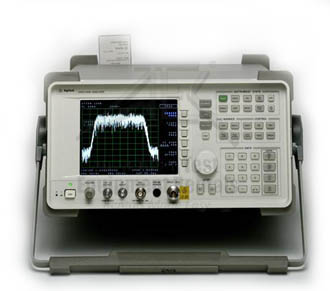

HP Agilent 8560EC Portable Spectrum Analyzer

HP/Agilent 8560EC Portable Spectrum Analyzer, 30 Hz - 2.9 GHz
Enlarge Image
Request Quote Print Page
Manual Datasheet

The Agilent 8560EC portable, color display RF spectrum analyzer combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.


Performance

  • +/-1.0 dB absolute amplitude accuracy
  • -151 dBm/Hz displayed average noise level (DANL)
  • <-113 dBc/Hz phase noise @ 10 kHz offset

Features

  • Fast digital resolution bandwidths of 1 Hz to 3 MHz
  • Portable, MIL-PRF-28800, Class 3 rugged
