HP Agilent 8662A- Signal Generator, 1.2 GHz

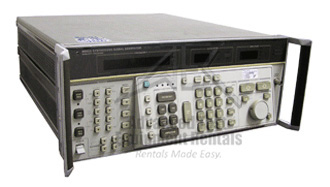

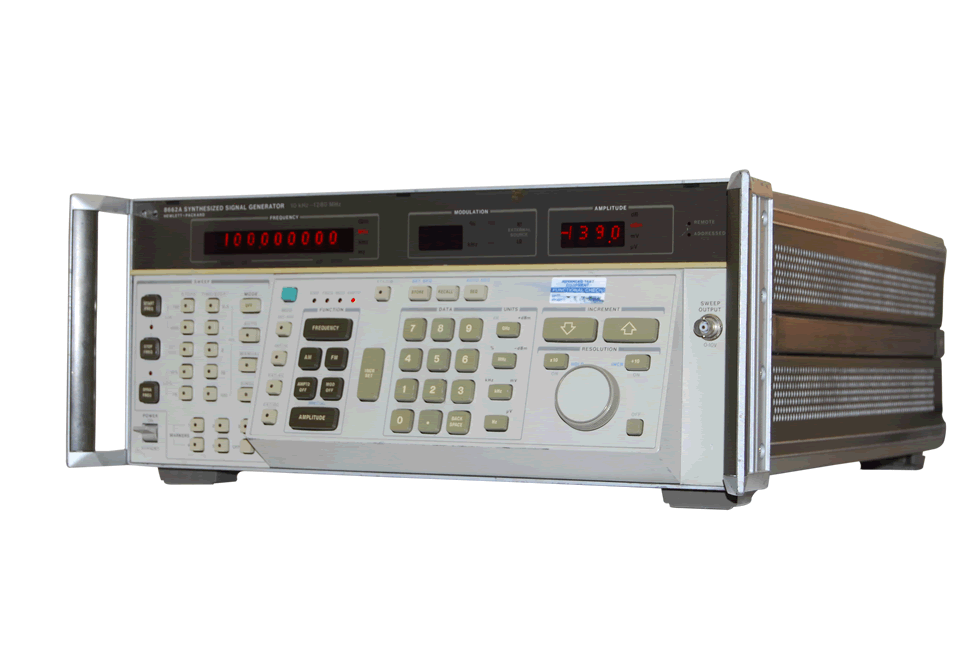

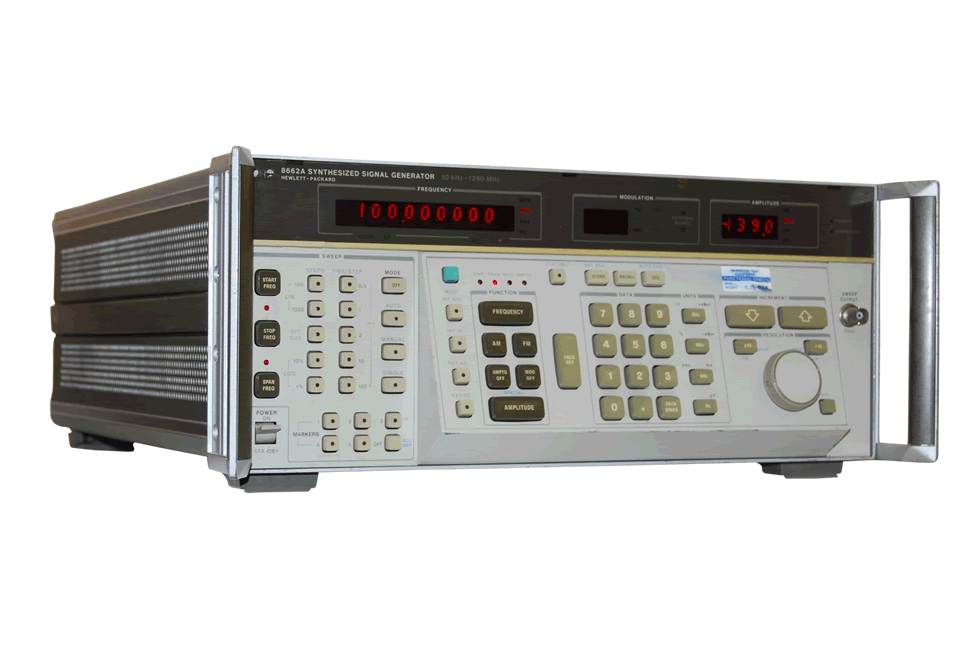

Agilent 8662A High-Performance Signal Generator, 1.2 GHz
Enlarge Image
Agilent 8662A High-Performance Signal Generator, 1.2 GHz Agilent 8662A High-Performance Signal Generator, 1.2 GHz Agilent 8662A High-Performance Signal Generator, 1.2 GHz
Request Quote Print Page
Datasheet

Spectral purity is the key contribution of the Agilent 8662A signal generator, making it ideal for many radar, satellite communication, and phase noise measurement applications. Typical absolute phase noise performance of this generator at a 1 kHz offset is as low as -135 dBc/Hz, depending on the band of operation. The frequency range of the Agilent 8662A is 10 kHz to 1280 MHz. It offers versatile AM/FM, using either internal 400 Hz and 1 kHz rates or externally applied modulating signals.



Features:

  • Frequency Range 10 kHZ to 1280 MHz
  • < -147 dBc/Hz SSB phase noise at 10 kHz offset
  • 0.1 Hz frequency resolution
  • Internal variable modulation oscillator
  • Optional MATE capability


Opt 001 RF Connectors on Rear Panel Only
