HP Agilent 8673D Synthesized Signal Generator

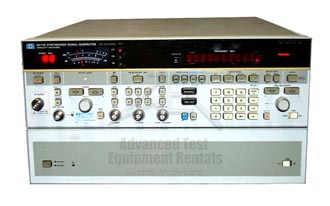

HP/Agilent 8673D Synthesized Signal Generator, 10 MHz - 26.5 GHz
Enlarge Image
Request Quote Print Page
Manual Datasheet

Full performance synthesizers designed to generate precise microwave signals over 50 MHz to 26.5 GHz frequency range.



Frequency Resolution 1KHz - 4KHz
Output Resolution .1dB
Programmable Interface GP-IB
SSB Phase Noise Range -105dBc/Hz
Time Base Stability <5x10-10/day
Time base stability 0.0000000005 /day
External Frequency Reference 10 MHz
Minimum Output Power -100 dBm
Maximum Output Power 6 dBm
Power Resolution 0.1 dB
Output Accuracy 3.3 dB
Output Level Switching Time 25 ms
Output Impedance 50 Ohm
Minimum Single-Side-Band Noise -98 dBc/Hz
Maximum Single-Side-Band Noise -52 dBc/Hz
Harmonics (noise) -60 dBc
Non-harmonics (noise) -60 dBc
External Modulation Inputs(Types) No
Sweep Modes Auto,Manual,Single
Maximum points of step sweep 9999 pt/sec.
