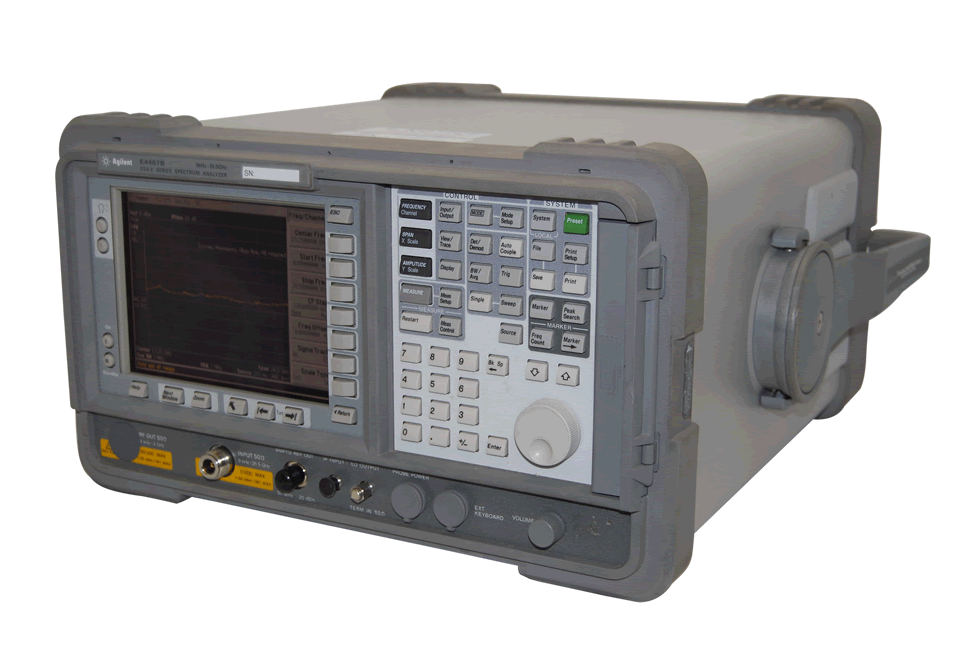

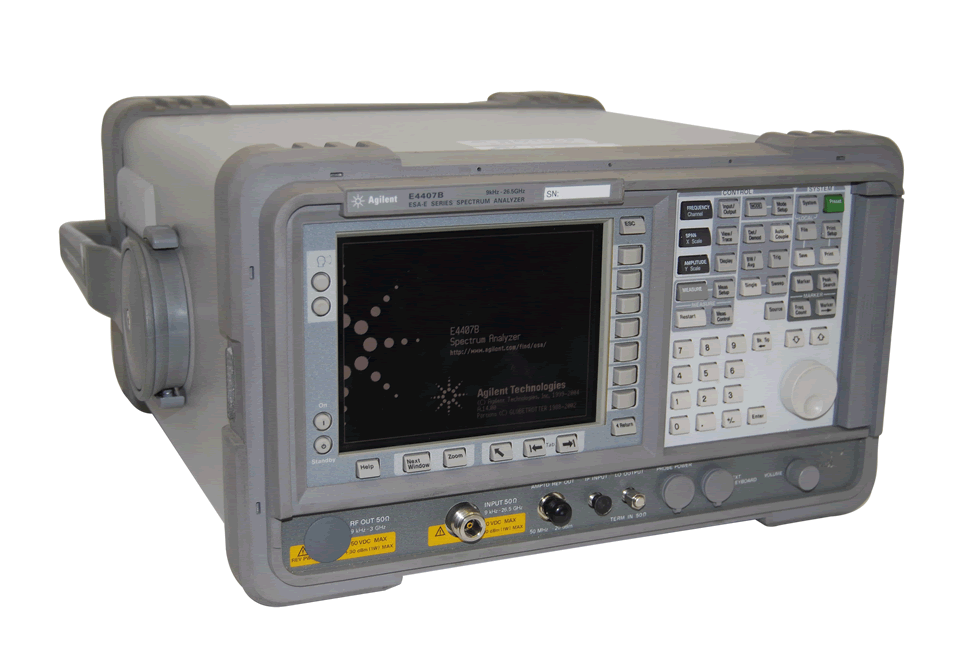

Customers looking for a general purpose spectrum analyzer will appreciate the flexibility of the Keysight E4407B ESA-E Series spectrum analyzer, which can be used for a wide range of applications from aerospace and defense to the manufacturing line. With express analyzer configurations (STD/STG/COM), customers will benefit from faster delivery and its price advantage. Customers wanting to take advantage of the ESA flexibility, but who need a faster analyzer for the manufacturing line, or connectivity to LAN/USB in addition to GPIB, or want to do in depth signal analysis with 89601A VSA software, will benefit from the EXA signal analyzer. For comparison convenience, the EXA specifications are shown in this ESA-E data sheet.
This analyzer has a standard frequency range of 9 kHz to 26.5 GHz, with low-end frequency coverage to 30 Hz with Option UKB. The frequency range is extended to 325 GHz with external mixing Option AYZ.
Features
- Noise Figure Measurement Personality
- Remotely view and control the ESA over the Internet
- 8590-series programming code compatibility
- 8566/68B programming code compatibility
- ESA-E series measurement solutions
- Modulation analysis measurement personality
- Bluetooth, GSM/GPRS and cdmaOne standards-compliant measurement personalities
- Fault location, phase noise and CATV service measurement personalities
- Rugged and portable for lab grade performance in the field
- One-millisecond RF sweep time, 45 measurements per second
- RMS, peak, neg peak, quasi-peak detectors
- 0.4 dB overall amplitude accuracy
- Optional 1 Hz digital-resolution bandwidth filter and preamplifier
- (-)167 dBm sensitivity, with internal preamp, +16 dBm TOI
- Maximum frequency coverage up to 325 GHz with external mixing
- Variable sweep (trace points) from 2 to 8192
- Segmented sweep for up to 32 discontinuous spans in one sweep
- Free IntuiLink PC software for screen and data transfer to Microsoft® Office
- Add a built-in microwave preamplifier to 26.5 GHz, Option H26, to make low-level signal detection and surveillance easier
- BenchLink spectrum analyzer connectivity software
- SCPI programming and IVI COM driver support
Accessories
- E4407B-060 Reduced emissions
- E4407B-106 Bluetooth FM demodulator
- E4407B-120 Enhanced Wide Offset Phase Noise and ACPR Dynamic Range
- E4407B-1AX RS-232 and Centronics interface
- E4407B-1D5 High stability frequency reference
- E4407B-1D6 Time-gated spectrum analysis
- E4407B-1D7 50 -75 ohm minimum loss pad(s)
- E4407B-1DN Tracking generator
- E4407B-1DR Narrow resolution bandwidths
- E4407B-1DS Preamp
- E4407B-219 Noise figure measurement personality and hardware
- E4407B-225 License Pre-Installed Cable fault location personality details.
- E4407B-226 License Pre-Installed Phase noise measurement personality details.
- E4407B-227 License Pre-Installed Cable TV Field Service and Analog Broadcast Measurement Personality details.
- E4407B-228 License Pre-Installed Bluetooth measurement personality details.
- E4407B-229 License Pre-Installed Modulation Analysis meas. Personality details.
- E4407B-230 BenchLink web remote control software details.
- E4407B-231 ESA to 89600 series software link update
- E4407B-252 License Pre-Installed EDGE upgrade to GSM Measurement Personality details.
- E4407B-266 HP8568/8566B code compatibility details.
- E4407B-290 859x programming code compatibilty
- E4407B-304 Bluetooth premium opt. Bundle
- E4407B-A4J IF and sweep ports
- E4407B-A5D 12 Vdc power cable
- E4407B-AYQ FM demodulation and quasi peak detector
- E4407B-AYX Fast time domain sweep
- E4407B-AYZ External Mixing
- E4407B-B70 BenchLink spectrum analyzer S/W
- E4407B-B75 Performance opts. Bundle
- E4407B-B7B TV trigger and picture on screen
- E4407B-B7D Digital signal processing and fast ADC
- E4407B-B7E RF communications hardware
- E4407B-B7K Cable fault measurement kit
- E4407B-BAA FM demodulation
- E4407B-BAB APC 3.5 Input Connector
- E4407B-BAC License Pre-Installed CDMAOne Measurement Personality details
- E4407B-BAH License Pre-Installed GSM/GPRS measurement personality
- E4407B-COM Communication test analyzer (1D5, 1DR, B7D, B7E, BAA) details
- E4407B-STD Standard analyzer (AYX, BAA) details
- E4407B-STG Standard analyzer with tracking generator (1DN,AYX, BAA)
- E4407B-UKB 100 Hz low frequency extension 1,203
