| Environment |
| Application field |
The instrument is intended for use in high-voltage substations and industrial environments. |
| Operating temperature |
0°C to +50°C (32°F to +122°F) |
| Storage & transport |
-40°C to +70°C (-40°F to +158°F) |
| Humidity |
5% – 95% RH, non-condensing |
| CE-marking |
| LVD |
Low Voltage Directive 2006/95/EC |
| EMC |
EMC Directive 2004/108/EC |
| General |
| Mains voltage |
115 / 230 V AC, 50 / 60 Hz |
| Power consumption (max) |
1380 W |
| Protection |
Thermal cut-outs, automatic overload protection |
| Instrument dimensions |
350 x 270 x 220 mm
(13.8” x 10.6” x 8.7”) |
| Transport case |
610 x 350 x 275 mm
(24.0” x 13.8” x 10.8”) |
| SVERKER 750 weight |
17.3 kg (38.1 lbs)

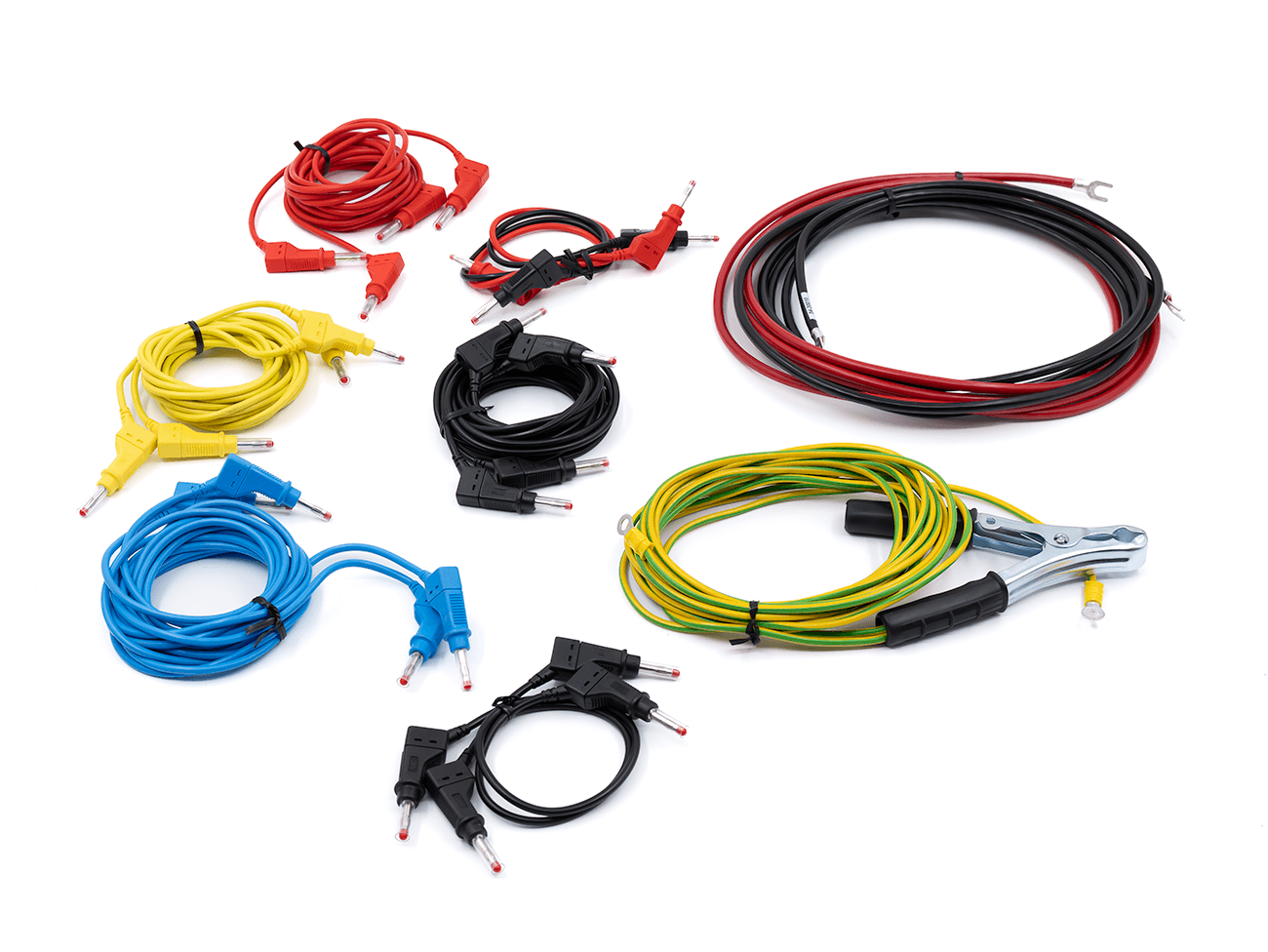

26.3 kg (58 lbs) with accessories and transport case |
| SVERKER 780 weight |
18.1 kg (39.9 lbs)
27.1 kg (59.7 lbs) with accessories and transport case |
