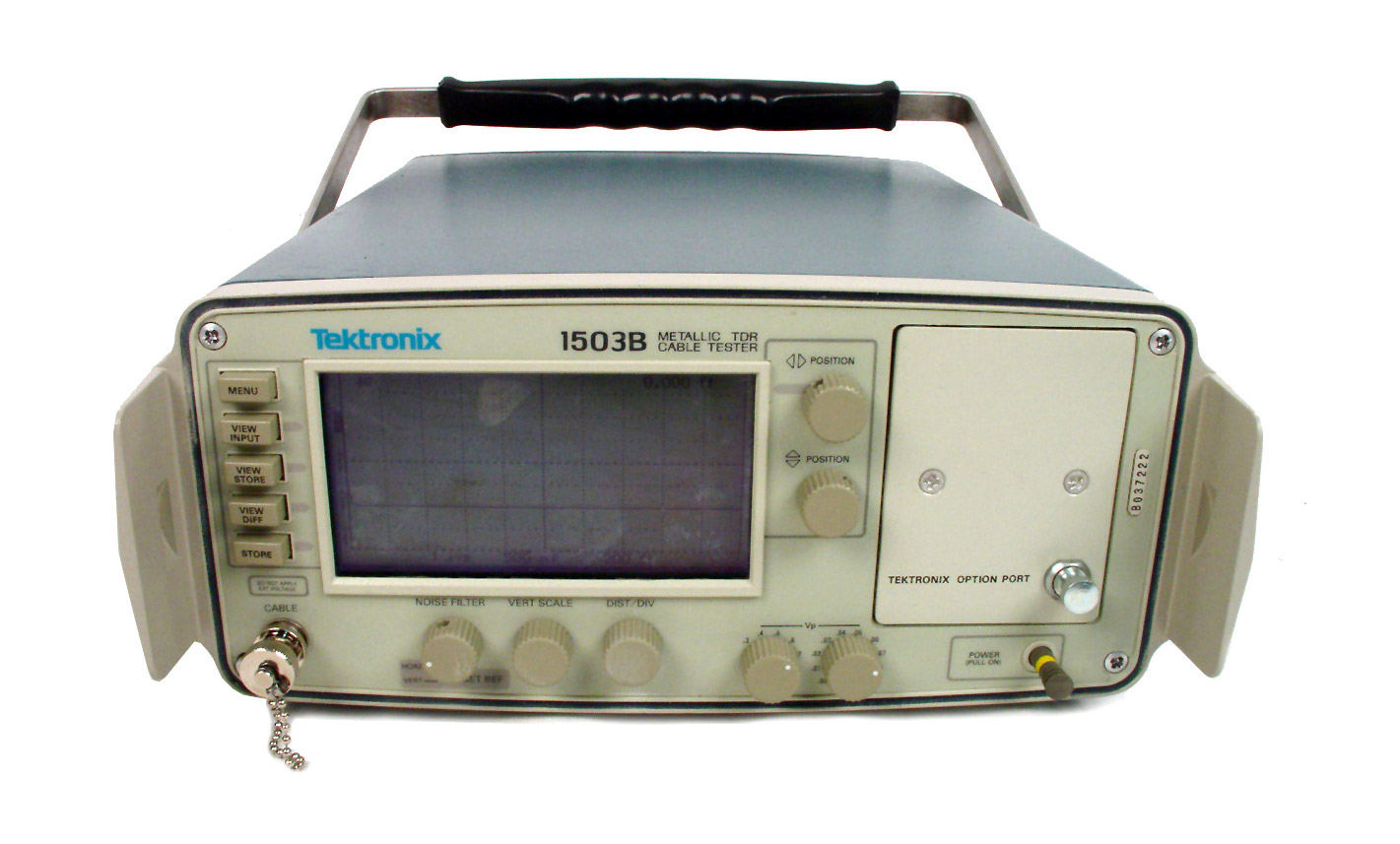

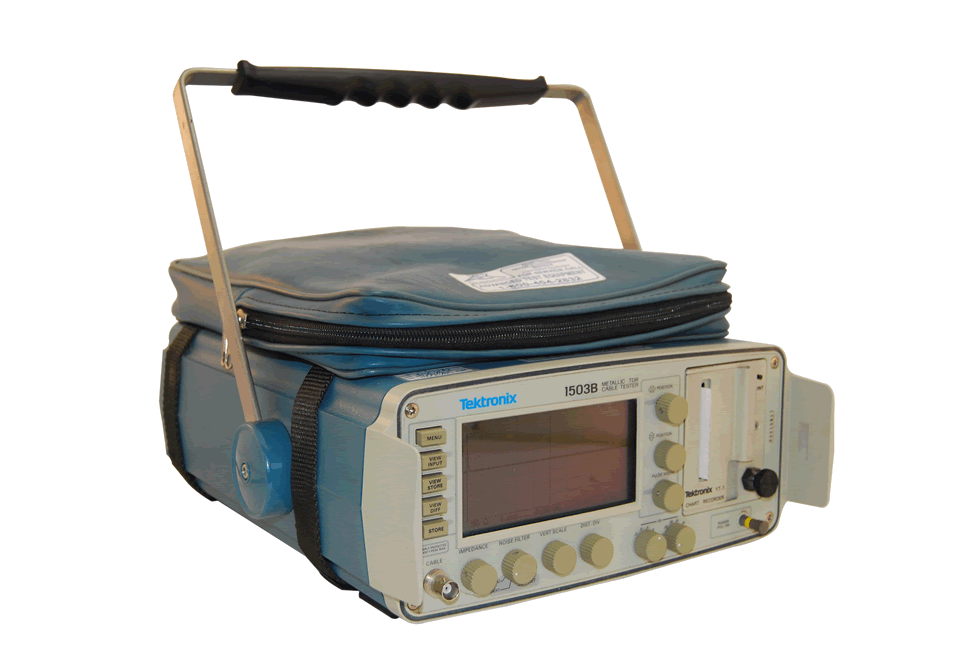

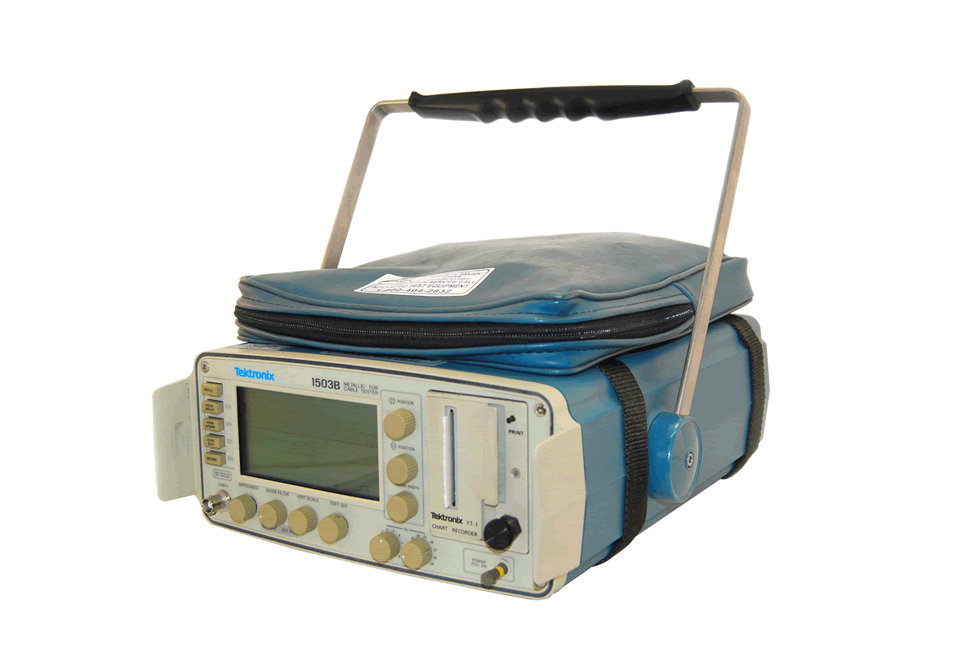

Tektronix 1503B TDR Time Domain Reflectometer Cable Tester

Tektronix 1503B TDR Time Domain Reflectometer Cable Tester
Enlarge Image
Tektronix 1503B TDR Time Domain Reflectometer Cable Tester Tektronix 1503B TDR Time Domain Reflectometer Cable Tester
Tektronix Test Equipment 1503B
Request Quote Print Page
Datasheet Other1

Long Range Metallic TDR


The unit generates a ½ sine pulse, with selectable pulse widths. The high-solution of 2 ns pulse permits the identification of multiple faults as close together as one foot.

Optional:
  • YT1 Chart Recorder - Records all information displayed on LCD, including waveform and setting for a permanent record.
  • Live Ethernet testing capability
  • Option 03: Battery Pack

Tektronix Test Equipment 1503B Features
  • Impedance settings for 50, 75, 93 and 125 ohm cables
  • Pulse widths: 2, 10, 100, 100 nsec
  • Maximum Range: 50,000 ft / 10,000 m
  • Distance resolution: 1.2 in / 3.0 cm
  • Distance per division: 1 to 5000 ft/div; 0.25 to 1000 m/div
  • Direct Distance Readout - Accurate to better than 1%
  • Intermittent fault monitor mode
  • High-resolution LCD display with zoom
  • Menu-driven setup
  • Help mode
  • Rugged Portability
  • Calibrated vertical scale: 0 - 63.75 dB gain
  • Optional internal printer and battery pack
  • Noise filter
Tektronix Test Equipment 1503B Applications
Local Area Networks locate cable and connector problems.
