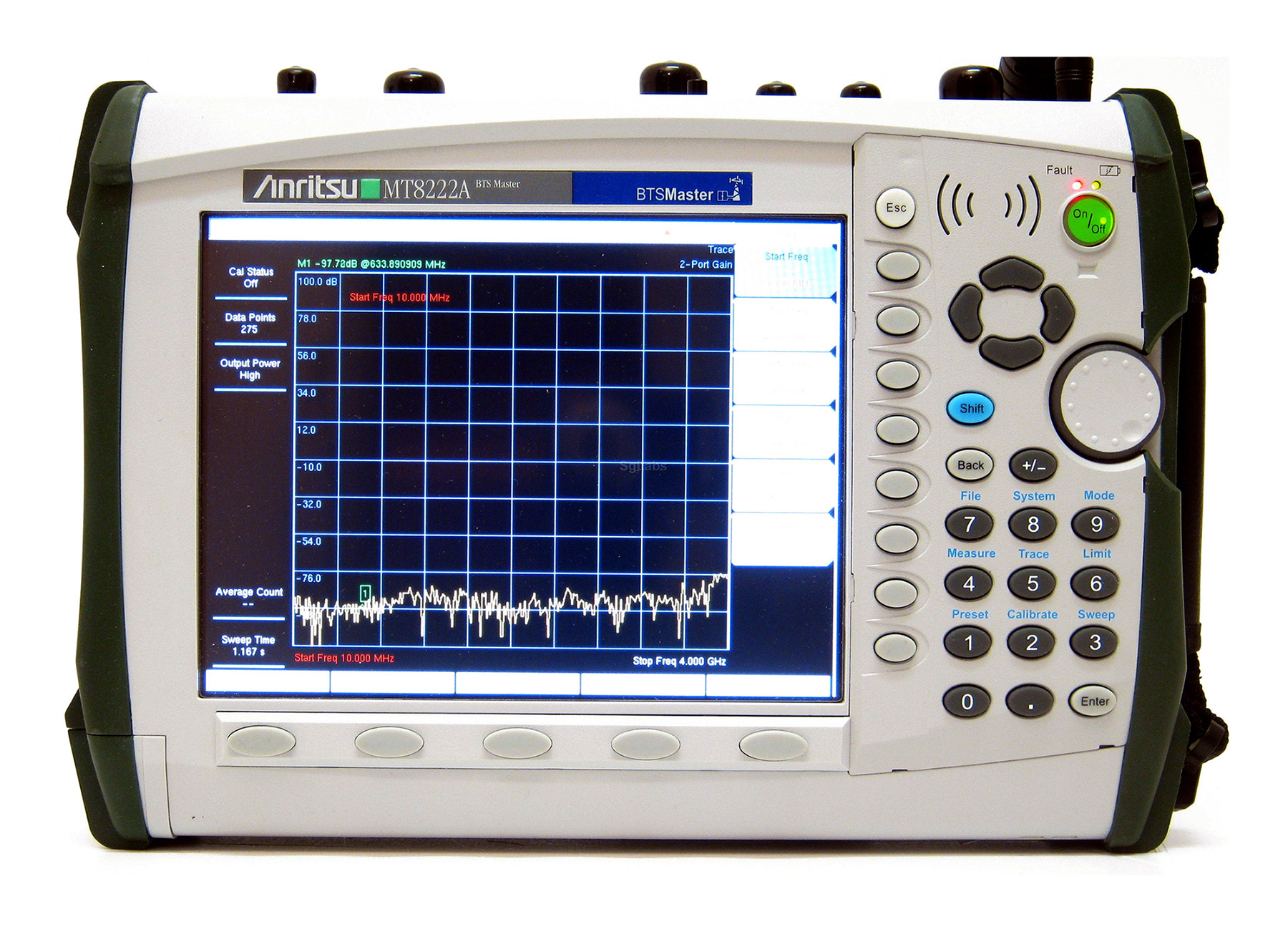

Anritsu MT8222A BTS Master
Enlarge Image
Anritsu MT8222A
Request Quote Print Page
MT8222A Datasheet
The BTS Master is an integrated multi functional base station test tool eliminating the need to carry and learn multiple test sets. The Anritsu MT8222A measurement capabilities include spectrum analysis including smart measurements, precision return loss, VSWR, cable loss, distance-to-fault, two port gain/loss, one port and two port magnitude and phase, interference analysis, spectrogram, RF and demodulation measurements for WCDMA/HSDPA, GSM/GPRS/EDGE, CDMA, EVDO, TD-SCDMA, Fixed WiMAX and Mobile WiMAX, demodulating WCDMA/HSDPA, CDMA, TD-SCDMA, EVDO over the air (OTA), location information, enhanced frequency reference oscillator accuracy, variable bias tee, 2 Mb/s - E1, T3 and T1 measurements. The High Accuracy Power Meter (Option 19) provides true RMS measurements.
MT8222A-005: Power Monitor (requires external detector)**
MT8222A-010: Bias Tee variable voltage
MT8222A-10A: High Voltage Bias Tee
MT8222A-019: High Accuracy Power Meter (PSN50 sensor not included)
MT8222A-025: Interference Analysis
MT8222A-026: 6 GHz Cable and Antenna Analyzer (10 MHz to 6 GHz)
MT8222A-027: Channel Scanner
MT8222A-028: CW Signal Generator (requires CW Signal Generator kit)
MT8222A-031: GPS Receiver (includes GPS antenna, Anritsu part number: 2000-1410)
MT8222A-033: cdmaOne and CDMA2000 1xRTT Over The Air (OTA)****
MT8222A-034: EVDO Over the Air (OTA)****
MT8222A-035: W-CDMA/HSDPA (OTA)****
MT8222A-037: Mobile WiMAX Over The Air (OTA) Measurements
MT8222A-038: TD-SCDMA Over The Air (OTA) Measurements
MT8222A-040: GSM/GPRS/EDGE RF Measurement
MT8222A-041: GSM/GPRS/EDGE Demodulation
MT8222A-042: CDMA RF Measurements
MT8222A-043: cdmaOne and CDMA2000 1xRTT Demodulator
MT8222A-044: W-CDMA/HSDPA RF Measurement
MT8222A-045: W-CDMA Demodulation
MT8222A-046: Fixed WiMAX RF Measurement
MT8222A-047: Fixed WiMAX Demodulation
MT8222A-051: T1/FT1 BERT (Bit-Error-Rate-Tester)**
MT8222A-052: E1-2 Mb/s Bit-Error-Rate-Tester (BERT)**
MT8222A-053: T3/T1/FT1 BERT (Bit-Error-Rate-Tester)**
MT8222A-060: TD-SCDMA RF Measurement
MT8222A-061: TD-SCDMA Demodulation
MT8222A-062: EVDO RF Measurements
MT8222A-063: EVDO Demodulator
MT8222A-064: DVB-T/H Digital Video Measurement
MT8222A-065: W-CDMA/HSDPA Demodulation***
MT8222A-066: Mobile WiMAX RF Measurements
MT8222A-067: Mobile WiMAX Demodulator
MT8222A-090: Gated Sweep
MT8222A-0419: PIM Analyzer (requires PIM Master™)
MT8222A-0541: LTE RF Measurements
MT8222A-0542: LTE Modulation Measurements
MT8222A-0546: LTE Over-the-Air Measurements****

*All the options are upgradeable at Service Centers except T1 option.
**Option 5 and Options 51, 52 and 53 are mutually exclusive.
***Option 65 includes Option 45.
****Requires Option 31 GPS
