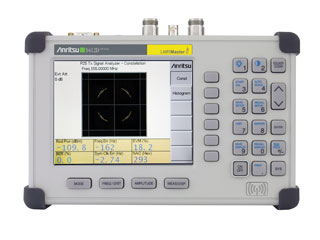

Anritsu S412D LMR Master - Land Mobile Radio Modulation Analyzer

Discontinued

The Anritsu S412D LMR Master is Discontinued

View the Anritsu S412E

The Anritsu S412D LMR Master Land Mobile Radio Modulation Analyzer is a compact, multi-functional, handheld device that operates in a frequency range of 100 kHz to 1.6 GHz. The S412D features a dynamic range greater than 65 dB with an accuracy of ±1 dB and measurement range from +20 dBm to -135 dBm. Sweep times can be as quick as 1.3 seconds full span and down to 50 µs in zero span. It is also designed to take key measurements for ACPE, occupied bandwidth, channel power, and carrier-to-interference ratio. With AM/FM and SSB demodulation, this model is ideal for field signal analysis.

Product Info Product Options Related Products

Frequency Range:	25 MHz - 1.6 GHz
Frequency Accuracy:	±50 ppm @ +25 °C
Frequency Resolution:	1 kHz (CW On)
Frequency Resolution:	100 kHz (CW Off)
Dynamic Range	>65 dB
Sweep Time	≤ 1.3 s full span; ≤ 50 μs - 20 s zero span
Phase Noise	≤ -75 dBc/Hz @ 30 kHz offset
Output Power:	< 0 dBm (–10 dBm nominal)
Immunity to Interfering Signals:	On-channel +17 dBm
Immunity to Interfering Signals:	On-frequency –5 dBm
Measurement Speed:	≤2.5 msec / data point (CW ON)
