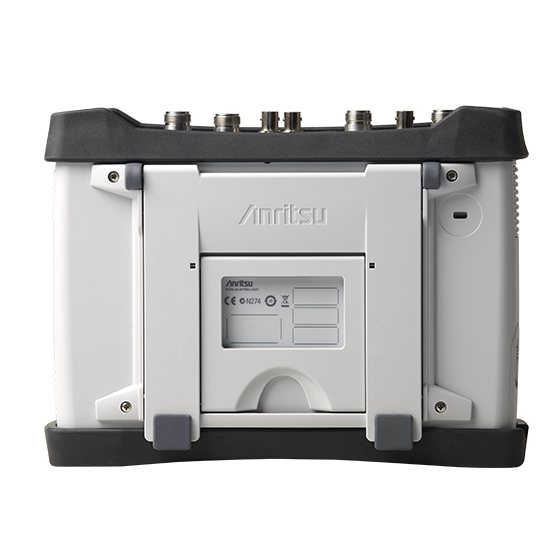

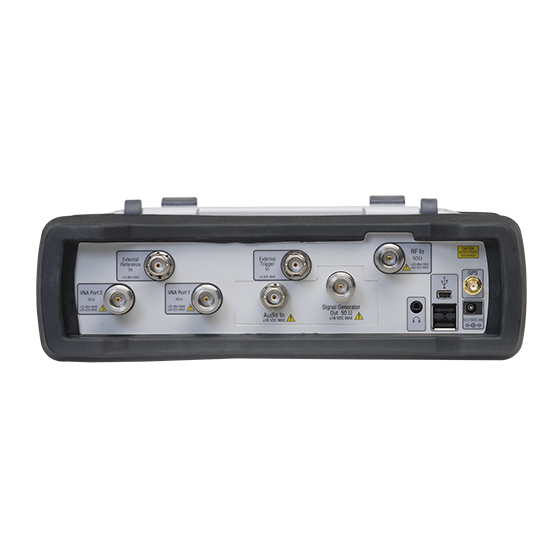

Anritsu LMR Master S412E

Larger

Categories

Documents

The Anritsu S412E LMR Master is the second generation solution for installing and maintaining public safety systems. Built on Anritsu’s ninth generation handheld platform, the Anritsu S412E Land Mobile Radio Modulation Analyzer combines a high performance receiver / spectrum analyzer with the world’s most advanced handheld vector network analyzer plus a powerful vector signal generator with internally adjustable power from 0 dBm to -120 dBm.

Ideal for Indoor and Outdoor LMR Coverage Mapping, the LMR Master S412E is the practical solution for performing a walk test or drive test. ATEC provides multiple configurations of the S412E to support P25, TETRA, LTE and more analysis.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Spectrum Analyzer Highlights:

Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Coverage Mapping
Interference Analyzer: Spectrogram, Signal Strength, RSSI, Mapping
Optional 6 GHz Frequency Coverage
Dynamic Range: > 95 dB in 10 Hz RBW
DANL: -152 dBm in 10 Hz RBW
Phase Noise: -100 dBc/Hz max @ 10 kHz offset at 1 GHz
Frequency Accuracy: < ± 50 ppb with GPS On

VNA Analyzer Highlights:

Broadband coverage of 500 kHz to 1.6 GHz
1-path, 2-port Vector Network Analyzer (VNA) w/ quad trace display
Optional 6 GHz Frequency Coverage
Intuitive Graphical User Interface (GUI) with convenient Touch Screen
VNA-quality error correction for directivity and source match
Outstanding calibration stability, up to 16 hours
Arbitrary data points up to 4001
IF Bandwidth selections of 10 Hz to 100 kHz
100 dB transmission dynamic range
850 μs/data point sweep speed

Land Mobile Radio Signal Analyzer Highlights:

FM modulation with CTCSS, DCS, and DTMF patterns
Support for ITCR Positive Train Control systems
500 kHz to 1.6 GHz frequency coverage
Internal signal generator control from 0 dBm to -120 dBm
2.0 dB signal generator accuracy (Typical)
P25, NXDN, and DMR2 BER test patterns including 1011 Hz, 1031 Hz, and O.153
Simultaneous analysis and generation of LMR signals
Independent control of both receive/transmit frequencies and test patterns

Capabilities and Functional Highlights:

3 hour battery operation time
Touch screen keyboard
Analog FM and Digital LMR Analyzer
High Accuracy Power Meter
On-Screen LMR Coverage Mapping (Outdoor and Indoor)
Channel Scanner
GPS tagging of saved traces
USB Data Transfer
< 5 minute warm-up time
8.4 inches daylight viewable color LCD
