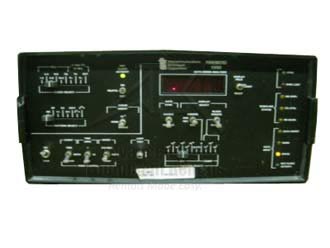

Image of TTC 1500 FIREBERD Data Error Analyzer

TTC

TTC 1500 FIREBERD Data Error Analyzer

Discontinued
The TTC 1500 FIREBERD Data Error Analyzer has been replaced with newer models


FIREBERD Data Error Analyzer

Product Info
  • Test Pattern: Pseudorandom sequences of 63, 511, 2047, 215-1, and 220-1; all marks, 1:1 and 1:3; QRSS pattern provided by T1 interface
  • Interface Emulation: DTE or DCE
  • Bit Rate: 50 b/s to 13.0 Mb/s with appropriate interface
  • Internal Standard Clock Frequencies: 1.2, 2.4, 4.8, 9.6, 19.2 and 56 kHz; 64kHz, 1.544, 2.048, 3.152, 6.312 and 8.448 MHz clock provided with appropriate interfaces
  • External Clock: Accepts external clock through the data interface module or a rear panel BNC connector
  • Block Length: 103, 104, or 105 bits
  • BER Test Length: 105, 106, 107, 108, 109, 1010 bits, and Auto
  • BER Range: 1.0 x 10-10 to 1.0 x 10-0
  • Error Insertion: Single logical errors or a constant 1.0 x 10-3 rate
  • LED Indicators DTE Mode: Sync, Sync Lost, Rcv Data Inv, Rcv Mark, Rcv Space, Rcv Clock, Gen Clk Actvy, DSR, CTS & RLSD
  • LED Indicators DCE Mode: Sync, Sync Lost, Tx Data Inv, Tx Mark, Tx Space, Tx Clock, Gen Clk Actvy, DTR, RTS & LT
  • Printer Interface: RS-232 serial ASCII format
  • Audio Indicator: Beeps on the occurrence of errors, sync losses, and BER measurement completion
  • Error analysis for evaluating digital communication links and hardware performance
  • Long-term testing with printout for isolating difficult communications circuit problems
  • Synchronous, asynchronous and isochronous testing
  • Unattended testing using RS-232 and IEEE-488 interfaces
  • Live T-carrier traffic monitoring


SKU: TTC-1500A
