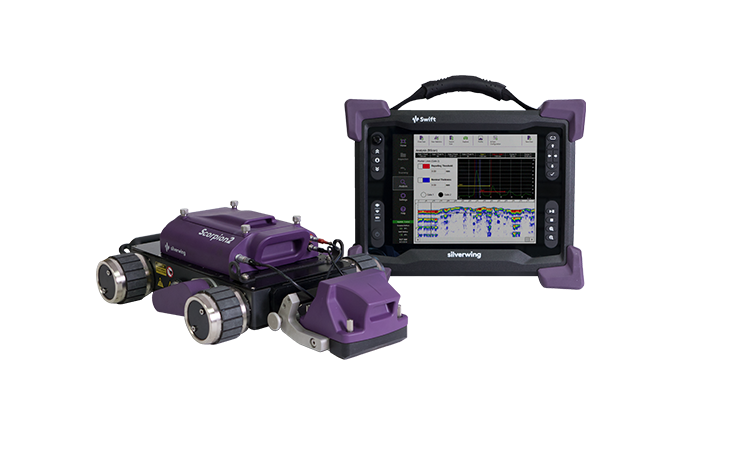

Eddyfi Swift UT & Scorpion2
The Eddyfi Swift and Scorpion 2 are specialized ultrasonic testing devices used together, designed for efficient inspections of water tanks. They support magnetic wheel probes that adhere to tank surfaces for stable, continuous scanning. The Swift UT offers portability and ease of use with a high-resolution touchscreen and customizable settings for thorough material analysis and flaw detection. The Scorpion 2 is built for rugged environments and provides high-speed data acquisition with advanced processing capabilities. Both devices are ideal for ensuring the integrity and safety of water tanks in various industrial settings.
| Scorpion2 | ||
|---|---|---|
| Umbilical length and weight | 50m (164ft), 4.3kg (9.4lb) | |
| Batteries | Type | Li-ion, rechargeable, DOT compliant |
| Typical life | 4 hours | |
| Maximum scan speed | 180mm/s (7in/s) | |
| Drive | 4 × independent active steering 12VDC motor | |
| Adhesion | 4 × neodymium-iron-boron magnetic wheels | |
| Transducer | Dry-coupled, 5MHz twin element | |
| Swift | |
|---|---|
| Transducer frequency | 2.25–20.00MHz |
| Maximum pulse rate | Application dependent. Capable of up to 20kHz |
| Pulse voltage | –75V to –200V, 25V steps |
| Pulse width | 25–225ns, 2.5ns increments |
| Damping | 50Ω |
| Sampling rate | 100MHz |
| Transducer range | 2.25–20MHz |
- Rugged, easy-to-use keypads
- Heavy-duty bumpers, hooked for harnessing
- Portable, rugged casing designed for IP65
- 26.4cm (10.4in), non-reflective, backlit, high-resolution multi-touch display
- 4-hour battery operation
- Permanent magnet drive wheels
- Twin encoders for straight-line driving auto-correction
- Automatic probe balance with active lift
- Dry-coupled, ultrasonic wheel probe
SKU: EDDY-SCORPION2
