Rohde & Schwarz

Rohde & Schwarz EB500 Monitoring Receiver | 8 kHz – 6 GHz

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery

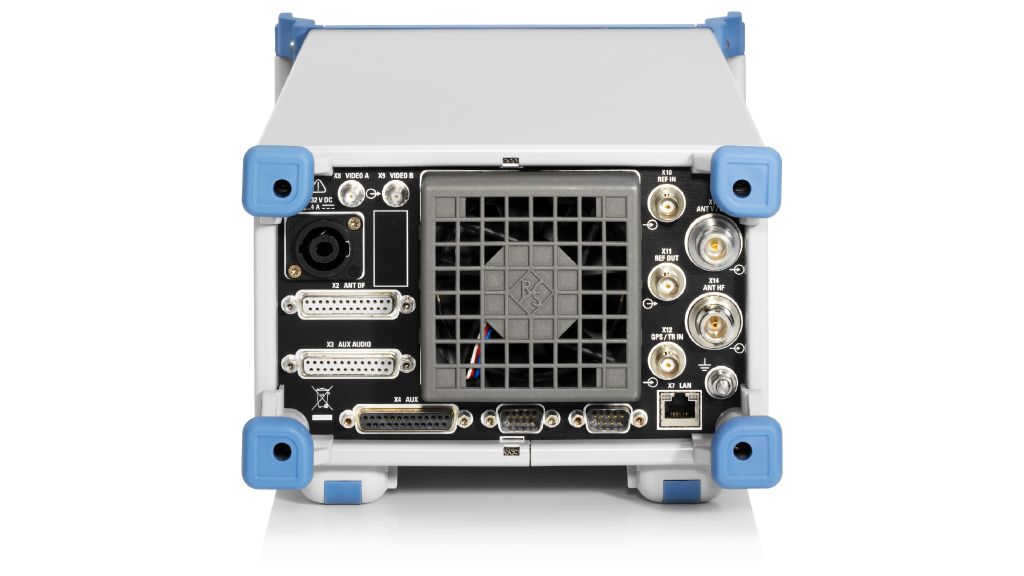

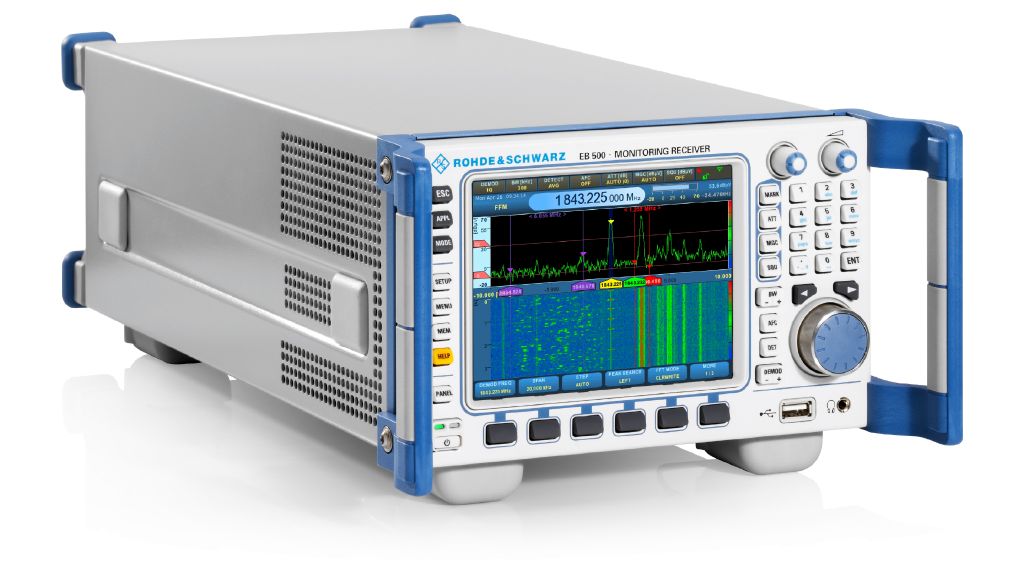

Rohde & Schwarz EB500 Monitoring Receiver | 8 kHz – 6 GHz Larger
Rohde & Schwarz EB500 Monitoring Receiver | 8 kHz – 6 GHz
Rohde & Schwarz EB500 Monitoring Receiver | 8 kHz – 6 GHz
Categories
  • Directional Interference
    Directional Interference
  • EMI Receivers
    EMI Receivers
  • RF Interference Hunting
    RF Interference Hunting
  • Spectrum Monitoring Tools
    Spectrum Monitoring Tools
Documents
  • Datasheet
  • Print
  • Email
The Rohde & Schwarz EB500 Monitoring Receiver has a frequency range of 8 kHz to 6 GHz. Designed for in-depth signal analysis, the Rohde & Schwarz EB500 allows technicians to determine adjustments they might need to make in order to approve the quality of a telecommunications network or system. The EB500 is ITU-compliant and has a variety of applications, such as front panel or remote control software, high-speed signal searches, and wideband demodulation.

With a user-friendly interface, several result displays, innovative measuring features, and more, the Rohde & Schwarz EB500 Monitoring Receiver is a dependable device. The EB500 monitoring receiver is the ideal tool for technicians with a variety of testing requirements. The demodulation modes are diverse: AM, FM, φM, pulse, ISB, I/Q (all IF bandwidths) and LSB, USB, CW, ISB (IF bandwidths ≤8 kHz). A real-time bandwidth, an internal recording feature, and map display with GPS are some of the other impressive capabilities of the Rohde & Schwarz EB500 Monitoring Receiver.

Reach out to an ATEC rental agent today to learn more about the Rohde & Schwarz EB500 Monitoring Receiver and other Rohde & Schwarz products. We can help you chose the best interference hunting or signal analyzing device.

  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
  • ITU-compliant measurements and applications for security authorities and organizations
  • Wide frequency range: 8 kHz to 6 GHz (base unit: 20 MHz to 3.6 GHz)
  • 20 MHz real-time bandwidth
  • Numerous options to increase performance
  • Various result displays
  • Integration into customer-specific software packages from third-party suppliers thanks to open, documented, remote control interface and data formats
  • Internal recording and replay of spectra and waterfall data (for receivers with front panel operation or for external R&S®EB500-GUI software)
  • Map display with GPS position (for receivers with front panel operation or for external R&S®EB500-GUI software)
Specifications
Frequency range 8 kHz - 6 GHz
Bandwidth 100/150/300/600 Hz
1/1.5/2.1/2.4/2.7/3.1/4/4.8/6/9/12/15/30/50/120/150/250/300/500/800 kHz
1/1.25/1.5/2/5/8/10/12.5/15/20 MHz
Demodulation modes All IF bandwidths: AM, FM, φM, pulse, ISB, I/Q
IF bandwidths ≤ 8 kHz: LSB, USB, CW, ISB
FFT spectrum Gap-free, dynamically overlapping FFT
Spectrum span (base unit) 1/2/5/10/20/50/100/200/500 kHz
1/2/5/10/20 MHz
Spectrum display Clear/write, average, max. hold, min. hold, histogram, pulse
Memory scan 10000 programmable memory locations
Frequency scan User-selectable start/stop frequency and step size
Fast spectral scan (panorama scan) Spectral scan with user-selectable start/stop frequency, step size (bin):
100/125/200/250/500/625 Hz
1/1.25/2/2.5/3.125/5/6.25/8.333/10/12.5/20/25/ 50/100/200/500 kHz
1 MHz
2 MHz
LAN interface (results) Spectra (realtime operation and scan mode)
Waterfall (spectrogram)
Demodulated audio information
Level measurement data
I/Q baseband data
Applications
Options
Accessories
Standards
Media

RELATED PRODUCTS

Narda SignalShark 3310 Signal Analyzer
Narda SignalShark 3310 Real-Time Handheld Spectrum Analyzer | RF Hunting
Rohde & Schwarz ESW44 EMI Receiver
Rohde & Schwarz ESW44 EMI Receiver
Rohde & Schwarz PR100 Portable Receiver, 9 kHz - 7.5 GHz
Rohde & Schwarz PR100 Portable Receiver
Keysight N9048B PXE EMI Receiver | 1 Hz to 44 GHz
Narda IDA 2 Interference and Direction Analyzer, Radio Direction Finder
Narda IDA 2 Interference and Direction Analyzer, Radio Direction Finder
Narda SignalShark 3320 Real-Time Remote Analyzer
Narda SignalShark 3320 Real-Time Remote Analyzer
Narda Automatic DF-Antenna 1
Narda Automatic DF-Antenna 1 Basic Set
PMM 9010F EMI Receiver
PMM 9010F 10 Hz - 18 GHz Real Time Analyzer & EMI Receiver
Rohde & Schwarz HE300 Active Directional Antenna
Rohde & Schwarz HE300 Active Directional Antenna
GAUSS INSTRUMENTS TDEMI ULTRA40 EMI Receiver
GAUSS INSTRUMENTS TDEMI ULTRA40 EMI Receiver
Narda Automatic DF-Antenna 2
Narda Automatic DF-Antenna 2 Basic Set
Rohde & Schwarz HE 100 Active Directional Antenna | 20 MHz - 1 GHz
Rohde & Schwarz HE 100 Active Directional Antenna | 20 MHz - 1 GHz
Narda SignalShark 3330 Real-Time Outdoor Remote Analyzer
Narda SignalShark 3330 Real-Time Outdoor Remote Analyzer
PMM ER800 FFT EMI Reciever
PMM ER8000 FFT EMI Receiver
Narda IDA 2 Interference and Direction Analyzer, Radio Direction Finder
Narda IDA 2 Interference and Direction Analyzer, Radio Direction Finder
Rohde & Schwarz ESR EMI Test Receiver
Rohde & Schwarz ESR 10 Hz - 26.5 GHz EMI Test Receiver
Narda IDA-3106 Interference and Direction Analyzer Base Unit
Narda IDA-3106 Interference and Direction Analyzer Base Unit
GAUSS INSTRUMENTS TDEMI X40 EMI Receiver
GAUSS INSTRUMENTS TDEMI X40 EMI Receiver
Keysight N9038A-526 EMI Receiver
Keysight N9038A-526 EMI Receiver, 3 Hz - 26.5 GHz
PMM Click Analyzer CA0010
PMM CA0010 150kHz Click Analyzer
Rohde & Schwarz ESU40 EMI Test Receiver, 20 Hz - 40 GHz, CISPR 16-1-1 Compliant
Rohde & Schwarz ESU | 40 20 Hz - 40 GHz EMI Test Receiver
Aaronia 60100 HyperLOG Directional Antenna
Aaronia 60100 HyperLOG Directional Antenna
Aaronia Spectran HF 60105 V4 Spectrum Analyzer
Aaronia Spectran HF 60105 V4 Spectrum Analyzer
Anritsu Field Master Pro MS2090A
Anritsu Field Master Pro MS2090A
Anritsu MS2713E Compact Handheld Spectrum Analyzer 9 kHz - 6 GHz
Anritsu MS2713E Handheld Spectrum Analyzer
  • Certified ISO 9001
  • A2LA
REP PORTAL Terms & Conditions About About ATEC Blog Media News FAQs Forms Careers

© 2023 Advanced Test Equipment Corp. All Rights Reserved.

Privacy Notice Terms of Use Site Map Linecards
This site uses cookies, as explained in our cookie policy.
