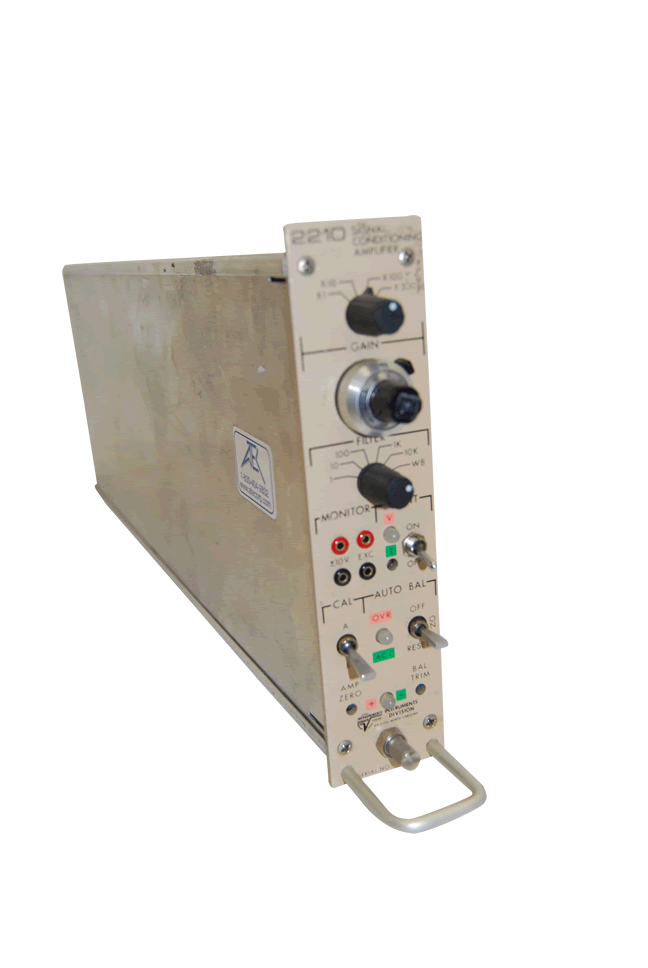

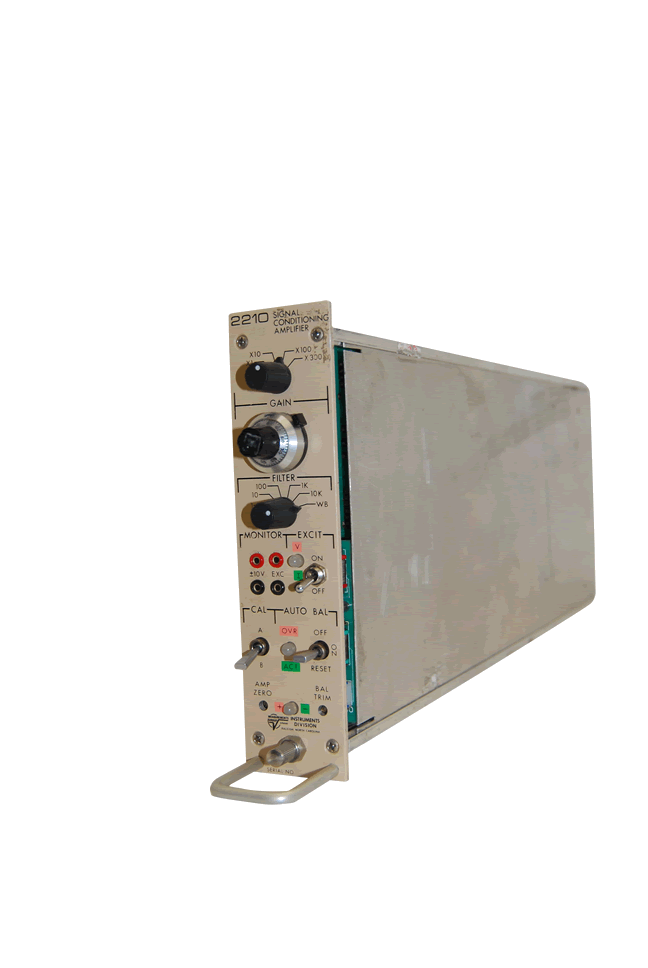

Vishay 2210 Signal Conditioning Amplifier System

Vishay 2210 Signal Conditioning Amplifier System
Enlarge Image
Vishay 2210 Signal Conditioning Amplifier System Vishay 2210 Signal Conditioning Amplifier System Vishay 2210 Signal Conditioning Amplifier System
Request Quote Print Page
Datasheet Other1

Features:

  • Isolated constant-voltage/constant-current excitation
  • Guarded input structure with + 350V common-mode capability, +10V and tape outputs
  • Automatic wide-range bridge balance
  • Four-pole Bessel low-pass filter
  • Constant-voltage or constant-current excitation, calibration configuration, and other optional operating modes

Specifications:

All references to microstrain assume a gage factor of 2.00
All specifications nominal or typical at +23 deg C unless noted

Input
Input Impedance dc-coupled: 22 MΩ shunted by 250 pF
ac-coupled: 1.1 microfarad in series with 20 kilΩ; low frequency cutoff (3 dB) 8 Hz nom
Source Current ± 10 nA typical; ± 20 nA maximum
Configuration 2 to 10 wire plus guard shield accepts quarter, half, or full bridge strain gage or transducer inputs. Internal half-bridge, dummy 350Ω and dummy 120Ω completion gages, remote sense and four-wire calibration capability provided. 1000Ω completion capability also provided. Accepts inputs from ground-referenced or isolated devices.
Differential Input Maximum differential input voltage of ± 50 Vdc or peak ac
Common-Mode Input Maximum common-mode input voltage of ± 350 Vdc or peak ac.
Guard Impedance Greater than 250 kilΩ to output common; greater than 1000 megΩ to power and rack ground
Amplifier
Gain 1 to 3300; continuously variable; direct reading. Gain steps X1, X10, X100, X300; with 10-turn counting knob, X1 to X11. Accuracy ± 0.5%.
Linearity ± 0.01% of full scale at dc
Frequency Response dc to 100 kHz: 3 ± 0.2 dB at all gain settings and full output.
dc to 50 kHz: 0.5 dB max at all gain settings and full output
Gain Step vs Frequency Response (3 dB) X300: 100 kHz
X100: 120 kHz
X10: 135 kHz
X1: 240 kHz
Slew Rate 6.3 V/microsec min at all gain settings
Noise (350Ω source impedance, dc-coupled) Referred-to-input (RTI) 1 microvolt 0.1 Hz to 10 Hz p-p; 2 microvolts 0.1 Hz to 100 Hz p-p
3 microvolts 0.1 Hz to 100 kHz rms
Referred-to-Output (RTO) Output related noise is a function of the setting of the gain multiplier potentiometer. Refer to the graph below for noise referred-to-output

Zero Stability ± 2 microvolts RTI, ± 200 microvolts RTO at constant temp.
Temperature Coefficient of Zero ± l microvolt/deg C RTI, ± 100 microvolt/deg C RTO; -10 deg to 60 deg C
Common-Mode Rejection Gain CMR (dB)
X1 82
X10 102
X100 122
X300 135
Common-Mode Voltage + 350 Vdc or peak ac, max operating
Standard Output ± 10V at 10 mA max
Tape Output 1.0 Vrms at 10 mA max
Output ac-coupled ± 10V at 10 mA max (7 Hz, 3 dB)
Output Monitor ± 10V standard monitored via front-panel jacks
Output Isolation >1000 meg ohms from power and rack ground
Output Protection Protected against continuous short
Capacitive Loading Up to 0.15 microfarad
Low-Pass Filter Four-pole Bessel low-pass filter with selectable 3 dB bandwidths of 1 Hz, 10 Hz, 100 Hz, 1 kHz and 10 kHz

Constant-Voltage Excitation
Range 0.50 to 15.0 Vdc at 85 mA max
Noise ± 100 microvolts ± 0.002% p-p dc to 20 kHz
Line Regulation ± 200 microvolts ± 0.01 % max for line voltage change of 10% from nominal
Load Regulation ± 200 microvolts ± 0.01% max for load variation of 10% to 90% of full load
Stability ± 0.01%/deg C or 100 microvolts/deg C, whichever is greater
Remote Sense Error <0.0005%/ ohms of lead resistance
Monitoring Front-panel monitoring jacks
Isolation Isolated from power ground and output common; floats with guard
Constant-Current Excitation
Range 0.50 to 15.0 mA dc or 1.00 to 30.0 mA dc. Compliance voltage 0.50 to 16.0V
Noise (1 microamps + 10 microvolts) p-p; dc to 20 kHz
Line Regulation ± 1 microamps ± 0.01% max for line voltage change of ± 10% from nominal
Load Regulation ± 1 microamps ± 0.01% max for 100% load change
Stability ± 0.01%/deg C or 1 microamp/deg C, whichever is greater
Monitoring Front-panel monitoring jacks; 10 mV/mA
Isolation Isolated from power ground and output common; floats with Guard
Balance
Method Electronically injected automatic balance
Range ± 15 000 microstrain (7.5 mV/V) RTI (X2 with internal jumper)
Resolution 0.50/microstrain RTI (X2 with internal jumper)
Balance Time 4 seconds typical; 8 seconds max
Accuracy ± 2 mV RTO; ± 2 microstrain RTI
Balance Trim< /td> ± 375 microstrain (188 microvolts/V) RTI
Storage Digital with battery backup. Battery life 3-5 years
Activation Activated by front-panel switch or by optically isolated remote switch or low TTL level
Calibration
Four internal shunt calibration resistors, + 0.1% tolerance
174.8K, 1000 microstrain (0.50 mV/V), 350Ω bridge
874.8K, 200 microstrain (0.10 mV/V), 350Ω bridge;
59.94K, 1000 microstrain (0.50 mV/V), 120Ωbridge
