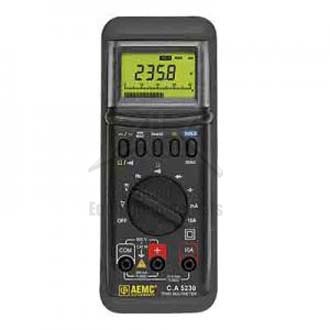

AEMC CA5230 Digital Multimeter, 100Hz to 400kHz

AEMC CA5230 Count Digital Multimeter
Enlarge Image
Request Quote Print Page
Datasheet

Features:

  • Tough, reliable, economical, professional DMMs in choice of 2000-, 4000- and 40,000-count models
  • Large backlit LCD (model dependent)
  • Clear pushbutton functions
  • Large rotary range selector and dedicated push buttons
  • Safety rated to EN 61010, 600V Cat. III for protection against spikes and over-voltage
  • Accurate average sensing or TRMS models for your linear loads and distorted signals
  • Complete line of accessories including leads and industry’s largest selection of current probes
  • Includes rugged, shockproof, protective, dirt resistant gray holster with Multistand™ (for lead and probe storage) and test leads



Applications:

  • Installation, repair or maintenance of industrial equipment
  • Electrical field testing
  • Troubleshooting failures and poor performance



Specifications:

AC Current
Measurement Range 3 Ranges: 40mA to 10A
Resolution 10μA to 10mA
Basic Accuracy* ±0.8% of Reading ± 4cts
AC Voltage
Measurement Range 5 ranges:
400mV to 600V
Resolution 0.1mV to 1V
Basic Accuracy ±1% of Reading ± 3cts
Basic Accuracy Basic Accuracy*
DC CURRENT
Measurement Range 3 Ranges:
40mA to 10A
Resolution 10μA to 10mA
Basic Accuracy ±1.2% of Reading ± 5cts
DC Voltage
Measurement Range 5 Ranges:
400mV to 600V
Resolution 0.1mV to 1V
Basic Accuracy ±0.25% of Reading ± 1ct
Input Impedance 10MΩ
RESISTANCE
Measurement Range 6 Ranges:
400Ω to 40MΩ
Resolution 0.1Ω to 10kΩ
Basic Accuracy ±0.5% of Reading ± 3cts
CONTINUITY
Beeper Activation Beeper Activation
DIODE TEST
Resolution 1mV
Basic Accuracy ±1% of Reading ± 2cts
CAPACITANCE
Measurement Range 5 ranges: 4nF to 40μF
Basic Accuracy ±1.5% of Reading ± 4cts
FREQUENCY
Measurement Range 5 Ranges:
100Hz to 400kHz
Basic Accuracy ±0.1% of Reading ± 20cts
