Associated Research 4450DT AC/DC Hipot w/Ground Continuity Test Set

Associated Research 4450DT AC/DC Hipot w/Ground Continuity Test Set
Enlarge Image

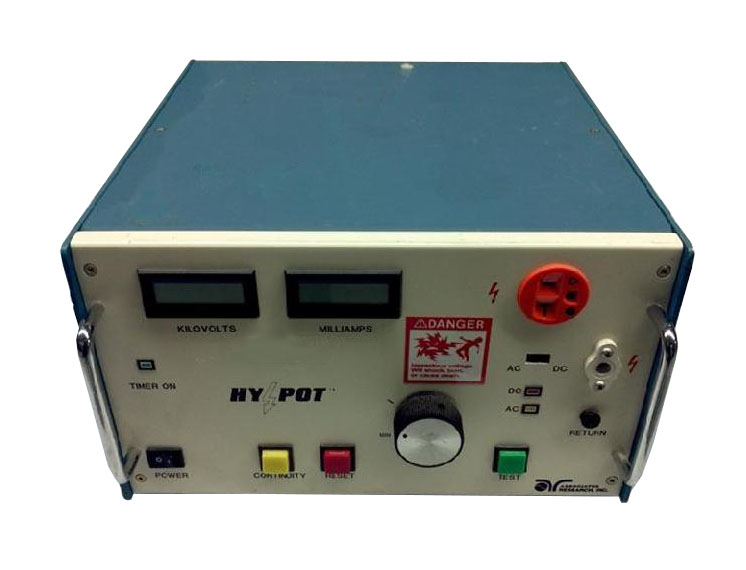

Associated Research 4450DT
Request Quote Print Page
4450DT Datasheet
4kV @ 15mA AC and 5kV @ 5mA DC, Hipot Ground Continuity Safety Tester

Associated Research 4450DT Features
  • No transients exceeding 120% of peak value. Automatic output shorting. Continuous duty cycle

  • Audible and Visual indication in addition to auxiliary relay contacts (SPDT) transferred when failure is detected

  • Arc detection through RF detector

Associated Research 4450DT Specs
Output Voltage 0-4 kilovolts AC continuously adjustable
0-5 kilovolts DC continuously adjustable
Output Current 0-15 mA in AC
0-5 mA in DC
Current sensitivity Adjustable from 0.75 mA - 15 mA in AC and 0.75 mA - 5 mA in DC
Input 120 volts AC, 50/60 Hz, single phase, 1A
