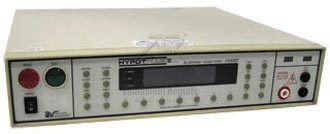

Associated Research 5500DT Dielectric Withstand Tester
Tech Support
(800) 404-2832
With Every
Rental
Worldwide
Delivery
Larger
Documents
Manual
Brochure
Print
Email
0-5kV AC Hipot Tester, 20mA w/Gnd Cont Check
Specifications
Features
Applications
Options
Accessories
Standards
Videos
Features
Microprocessor digital design with software friendly menuing
Tamper proof front panel controls
Enhanced PLC & Ten Volt analog signal for automated applications
Can be interconnected to HYAMP II ground bond tester to form a semi-automated test system
Advanced failure detection system including continuity, LO, HI, Arc, short and breakdown
Adjustable high and low limit
Specifications
Output range
0 - 5000 VAC
Meter
Digital with 10 V resolution
Leakage current range
20 mA
Accuracy
±2% of settling +5 V
Timer display
0.0 to 999.9 s
Ground continuity check
current DC 0.0 A ±0.01 A, fixed
Operation
115/230 VAC ±15%, 47 Hz - 63 Hz
Applications
Options
Accessories
Standards
Media
