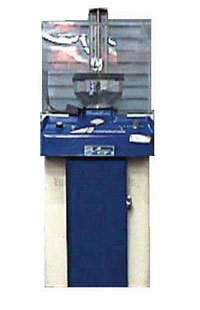

Avco SM005-3 Shock Test Machine
Tech Support
(800) 404-2832
With Every
Rental
Worldwide
Delivery
Larger
Documents
Manual
Print
Email
Up to 50lbs, 330ips, 17" Stroke Shock Machine
Specifications
Features
Applications
Options
Accessories
Standards
Videos
Features
Specifications
Carriage Size
9 ¼" by 9 ¼"
Stroke
18"
Terminal Velocity
330" per second (no load); 300" per second (with 25 lb. specimen)
Cycling Rate
4 cycles per minute
Specimen Weight
50 lb (maximum)
Power Source
115 VAC; 5A
Air Pressure
100 to 125 psig (filtered)
Base
20 inches x 20 inches
Air Consumption
4 SCFM (adiabatic expansion)
Height (floor to top of carriage)
43 inches
Installed Weight
1200 lb
Shipping Weight
1250 lb domestic
1340 lb export
