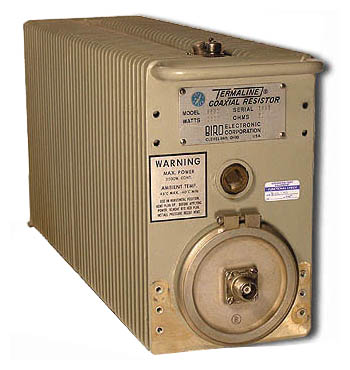

Bird 8890 Termaline Coaxial Resistor Dummy Load

Bird 8890 Termaline Coaxial Resistor Dummy Load
Enlarge Image
Bird Technologies 8890
Request Quote Print Page
Manual

The Bird 8890 Termaline Dummy Load is designed as a low reflection and non-radiating termination for coaxial RF transmission lines, to aid in the tuning and trouble-shooting of transmitting equipment within its rating. The Bird 8890 Termaline Dummy Load is self-contained. No additional equipment or outside power source is required.



Specifications:

Characteristic Impedance 50 ohms, nominal
Power Rating 2500 W continuous
VSWR 1.1 max., DC - 1000 MHz:
1.25 max., 1000 to 2000 MHz
Input Connector Female LC normally supplied
