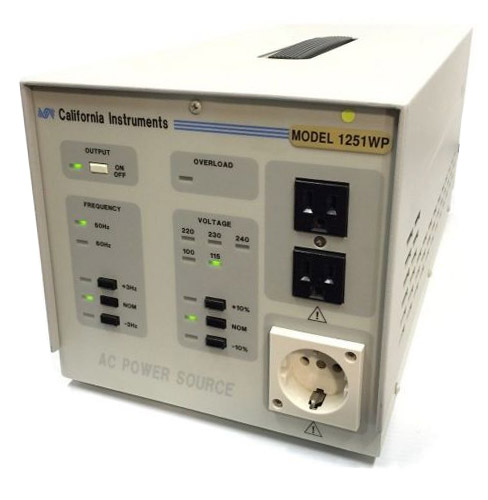

CA Instruments 1251WP AC Power Supply 1250 VA

Rent CA Instruments 1251WP AC Power Supply 1250 VA
Request Quote Print Page
Datasheet
AC Power: 1250 VA Selectable Low Range: 100 V, 115 V High Range: 220 V, 230 V, 240 V Accuracy: ±1% of setting Limit Testing: -10%, nominal, +10% Line & Load Regulation ±2% max Total Harmonic Distortion: ≤ 1 % typical Output Noise Low Range: ≤ 150 mV High Range: ≤ 500 mV " />

Features:


  • Worldwide voltage and frequency output
  • Easy to use test limit parameters
  • Unique two stage current limit protection
  • Universal input from 85 V to 264 V, 47 Hz to 63 Hz
  • High efficiency with input power factor correction
  • Lightweight and portable


Specifications:


AC Power: 1250 VA
Selectable Low Range: 100 V, 115 V
High Range: 220 V, 230 V, 240 V
Accuracy: ±1% of setting
Limit Testing: -10%, nominal, +10%
Line & Load Regulation ±2% max
Total Harmonic Distortion: ≤ 1 % typical
Output Noise Low Range: ≤ 150 mV
High Range: ≤ 500 mV
