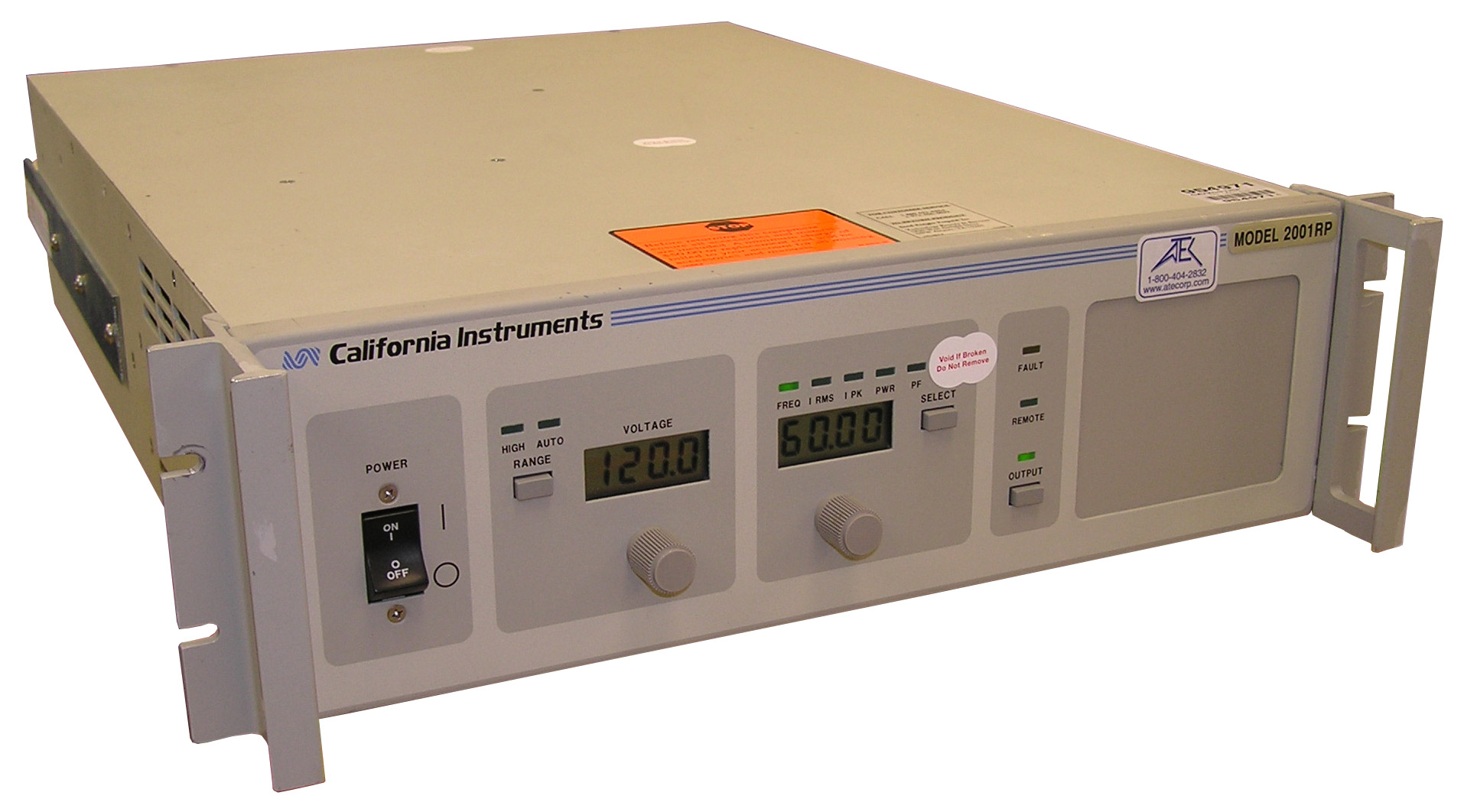

CA Instruments 2001RP Programmable AC Power Source

CA Instruments 2001RP Programmable AC Power Source
Enlarge Image
California Instruments 2001
Request Quote Print Page
Manual Datasheet

Offering simple rotary front panel controls, the California Instruments 2001RP programmable AC power source is ideally suited for a wide range of applications. Selectable input voltage ranges allow this product to be used anywhere in the world to provide a convenient source of variable utility power for the testing and evaluation of domestic and commercial equipment.


All common line voltage and frequency combinations are covered. In addition, the frequency range extends to 5000 Hz, making these products ideal for commercial and defense avionics applications. Accurate measurement functions are available as an option to eliminate the need for external test equipment in many test setups. Voltage, current, peak current, power, and power factor can be read directly on the large LCD display or over the bus. Overload protection is provided standard using a programmable current limit function.


California Instruments 2001 Features
  • 2000 VA Output Power Capable of handling most single phase applications
  • 16 Hz to 5000 Hz Frequency Range Commercial, Military and Avionics applications
  • High Peak Current Capability Drives a wide variety of non-linear loads
  • Precision Measurements Accurately measures TRMS Volt, TRMS Current, Peak Current, Crest Factor, Real Power and Power Factor
  • Remote Control IEEE-488 and RS232C Interface for automated test applications. Includes Windows operating software
California Instruments 2001 Specs
Controller
Type Programmable
Controls Digital Encoders
Readouts dual 4 digit LCDs
Non Volatile Setups
(with -OP1 option)
1 (8)
Output
AC Power maximum 2000 VA
Load Connection floating neutral Rear panel terminal block
optional Universal front panel sockets
Voltage
High range / Low range 0 - 300 / 0 - 150 V RMS
Accuracy 16 Hz - 100 Hz ± 0.1 % FS
100 Hz - 5000 Hz ± 0.2 % FS
Resolution 0.1 V
Load Regulation remote sense ± 0.1 % FS
Line Regulation 10 % Line change ± 0.02 % FS
T.H.D. (into a resistive load) 16 Hz - 100 Hz 0.5 typ./ 1.0 max. %
100 Hz - 5000 Hz 1.0 typ./ 2.0 max. %
Output Noise < 0.1 typ. V RMS
Frequency
Range 16 - 5000 Hz
Accuracy ± 0.02 %
Resolution 16.00 Hz - 80.00 Hz 0.01 Hz
80.1 Hz - 800.0 Hz 0.1 Hz
800 Hz - 5000 Hz 1 Hz
Current
RMS Current High / Low V range 6.7 / 13.4 A RMS
Peak Current High / Low V range 22.2 / 44.5 A
Protection
Adj. Current limit Resolution 0.1 A RMS
Modes Const. Current or Const. Volt
Input
Connection Rear panel terminal block
Line Voltage 2 wire + GND 103 - 127 V or 187 - 253 V RMS
Line Current 47 - 440 Hz
Holdup Time 10 ms
Isolation Input to Chassis/Output 1350 / 2200 V
