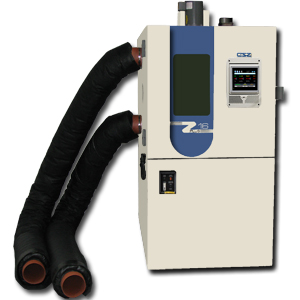

Cincinnati Sub-Zero ZPRC Remote Conditioners

The Cincinnati Sub-Zero ZPRC is a series of remote conditioners with two-in-one capabilities to either deliver temperature-conditioned air to remote sites or operate as a self-contained temperature/humidity chamber. Performing under the remote operation, it can reach up to 177°C, while chamber operation provides up to 190°C.

ATEC offers the 16 cubic feet or the 32 cubic feet models as rental options. Please reach out if you would like to discuss other options.

Product Info Related Products

Workspace Volume	16 cu. ft. (453 l)	32 cu. ft. (906 l)
Temperature / Humidity Range
Remote Conditioner Operation	Single Stage: -30°C – 177°C Cascade: -65°C – 177°C Optional Humidity Range: 10% – 80% RH	Single Stage: -30°C – 177°C Cascade: -65°C – 177°C Optional Humidity Range: 10% – 80% RH
Chamber Operation	Single Stage: -34°C – 190°C Cascade: -70°C – 190°C Optional Humidity Range: 10% – 95% RH	Single Stage: -34°C – 190°C Cascade: -70°C – 190°C Optional Humidity Range: 10% – 95% RH
Cooling Method	Mechanical	Mechanical
Internal Dimensions W x D x H Inches (cm)	30 x 30 x 24 in (76 x 76 x 61 cm)	38 x 38 x 32 in (97 x 97 x 81 cm)
External Dimensions W x D x H Inches (cm)	42 x 63 x 85 in (107 x 160 x 216 cm)	50 x 71 x 94.5 in (127 x 180 x 240 cm)

Dual-purpose chamber offers flexibility and a greater return on your investment
Versatile design for use in a variety of applications
Temperature condition moving devices in special fixtures that cannot be placed in conventional environmental chambers
Customizable to meet your specific test requirements
Durable chamber construction for dependability and longer life
Energy savings provided through a bi-modal heating and cooling system that saves energy and eliminates the need to override the cooling system with an excessively large heating system
Chamber construction provides customers with the flexibility to incorporate both left and right-side ports
Fully welded ports and shelf pilasters eliminate potential leaks, increasing the life of your chamber
An electronic humidity sensor is used on all humidity models for accuracy and minimal maintenance

IEEE-488 Computer Interface
EIA-232/485 Computer Interface

SKU: CINC-ZPRCH-SERIES
