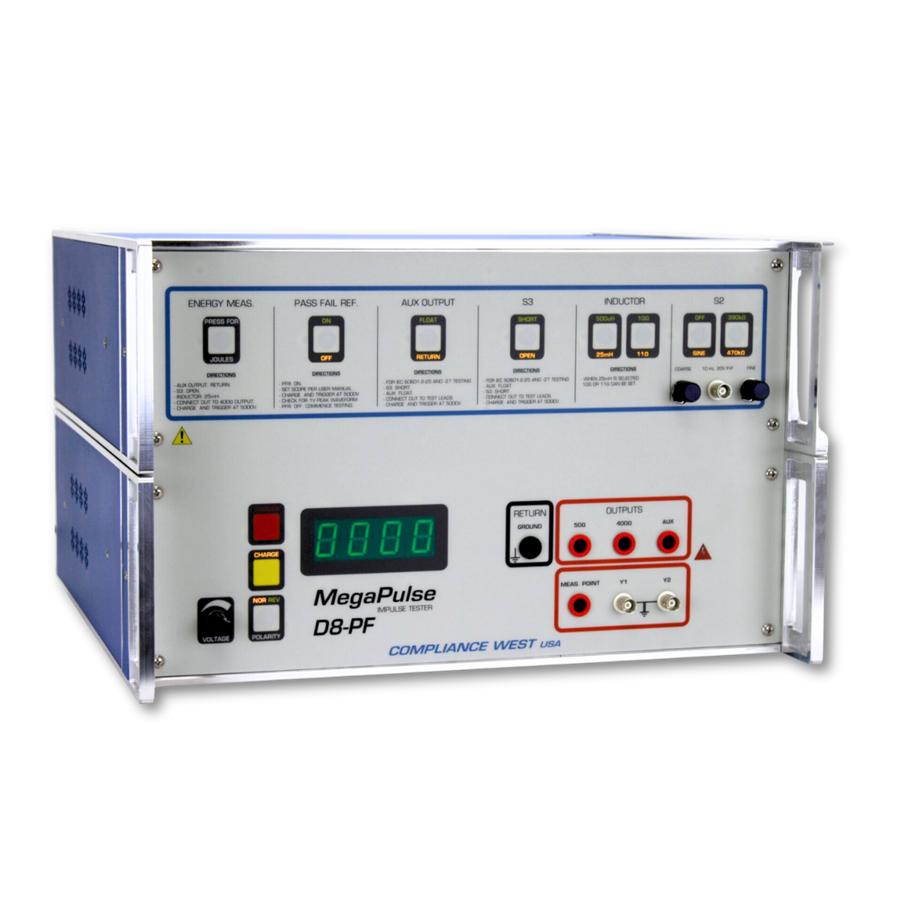

Compliance West MegaPulse D8-PF Medical Surge Tester
The Compliance West MegaPulse D8-PF is a medical surge tester designed to evaluate the durability of medical devices against defibrillator discharges. It conforms to industry standards, ensuring devices meet global safety regulations for surge exposure. The tester is equipped with an intuitive interface for straightforward setup and operation, along with automated test sequences that streamline the testing process. Safety features are integrated to protect both the operator and the equipment during tests. This tester is essential for manufacturers seeking to assess and enhance the electrical resilience of medical devices.
| Charge Voltage | 5100V ±1% | |
| Main Capacitance | 32uF ±5% | |
| Inductances | 500uH and 25mH ±5% | |
| Main Resistance (R1) | 100Ω ±1% non-inductive | |
| Output Impedance | 50Ω and 400Ω ±1% non-inductive Optional 10Ω available |
|
| Polarity Control | Positive and Negative. Alternating control available with USB. |
|
| Voltage Display | 4 Digit LED Display | |
| Voltage Meter | Resolution | 5V |
| Accuracy | ±1% | |
| Line Voltage | 120V AC, 50/60Hz. 230V AC ±10%, 50 Hz ±1 Hz (CE for EU). |
|
- Updated front panel with digital switches.
- Digital output voltage knob on the front panel.
- Integrated High Voltage on hold circuit.
- Joules readout for the last pulse is displayed by pressing a button.
- Integrated Y1-Y2 measuring circuit.
- Built-in Pass/Fail reference circuit.
- External interlock disables HV output and defeats test when circuit is open.
- Long life capacitor rated for 2.5 million pulses.
- USB TestMinder, computer control.
- Auto-trigger via USB.
- Front panel indicates internal HV and polarity.
- Polarity button selector on the front panel.
- Front panel switches and instructions for various test setups.
- Microcontroller technologies.
- Medical Device Testing
- Quality Assurance
- R&D
- IEC 60601-1-2: Medical Electrical Equipment
- IEC 80601
- EC-13
- EC-53
SKU: COWE-D8-PF
