Crystal Instruments CoCo-90X Handheld Dynamic Signal Analyzer

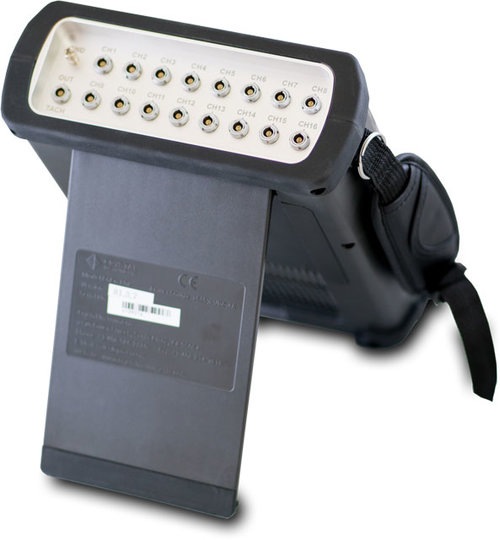

The Crystal Instruments CoCo-90X is a handheld dynamic analyzer for electrical measurement, acoustic analysis, and a wide range of other applications. Crystal Instruments CoCo-90X Handheld Dynamic Signal Analyzers are equipped with 16 input channels and accurately measures and records both dynamic and static signals. The CoCo-90X's mass flash memory records 16 channels of streaming signals simultaneously up to 51.2 kHz while simultaneously computing real-time time and frequency-based functions. An embedded signal source channel provides various signal output waveforms that are synchronized with the input sampling rate.

The Crystal Instruments CoCo-90X Handheld Dynamic Signal Analyzer is equipped with a bright 7.0-inch color LCD display with multi-point touch functionality as well as a physical keypad. CoCo-90X provides flexible connections via a USB 2.0 port, 100Base-T Ethernet port, 802.11 b/g/n Wi-Fi connection, SD card interface, HDMI interface, CAN-Bus/serial port, stereo headphone and microphone jack, and GPS. The user connects the CoCo-90X to a PC, downloads files and upgrades the software through serveral network connection options.

Product Info Related Products

LCD	7” color TFT WVGA display 800x480 resolution with P-Cap touch screen, 1300 NITS
SD card storage	Up to 256 GB (removable)
Number of input channels	16
Coupling	AC, DC, or IEPE (ICP)
Input type	Differential or single-ended
Input range	±20 Vpk, ±2 Vpk, ±0.2 Vpk
A/D resolution	24-bit per input channel
Sampling rate	0.48 Hz to 102.4 kHz, with 54 stages
Dynamic range	100 dBFS (100 Hz to 4.6 kHz)
Phase channel match	Less than 0.3 degrees up to 20 kHz
Number of outputs	1
Output range	±10 Vpk

Data recorder
Order tracking
Acoustic analysis
Acquisition mode
Vibration intensity
Frequency response function
Sound power analysis

SKU: CRYS-C90X-P16-R-30
