Dranetz 658-400 Power Quality Analyzer

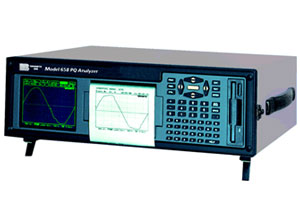

Dranetz/BMI 658-400 Power Quality Analyzer
Enlarge Image
Request Quote Print Page
Datasheet

Features:

  • 4 Input Channels
  • Real-Time Scope Mode
  • Internal UPS (5 min.)
  • Flat-Panel Display Screen
  • Zoom Magnification
  • RS-232 Serial Ports
  • 512K RAM Event Memory
  • Internal Graphics Printer
  • Input Cable Set with Pallet
  • 3.5" Disk Drive
  • Harmonic Analysis



Specifications:

Voltage 0 - 600 Vrms
Current 0 - 3000 Amps
Accuracy ±1% reading, ±0.2 full scale
Impulse Measurements 2.4 to 6144 Volts peak, 2.4 to 6000 Amps peak, 1 microsecond minimum duration
Sampling Rate 7.2 kHz/channel for RMS, 1.85 MHz/channel for impulse
Frequency 45 - 65 Hz, 310 - 445 Hz
Optional Inputs 8 independent differential channels, configurable as voltage or current - 0 - 10 VDC, 0 - 20 mA DC, 12.5 Hz sampling




Options:

  • 656-PA-1001 8-Channel Transducer
  • 656-XD-1001 Temperature & Humidity Monitor (requires 656-PA-1001)
  • 656-XD-1002 Conducted RF Monitor (requires 656-PA-1001)
  • 656-XD-1003 Radiated RF Monitor (requires 656-PA-1001)
  • 658-2400M Internal Model
  • TR2019B Current Probe, 1 to 300 A, 2" max conductor
