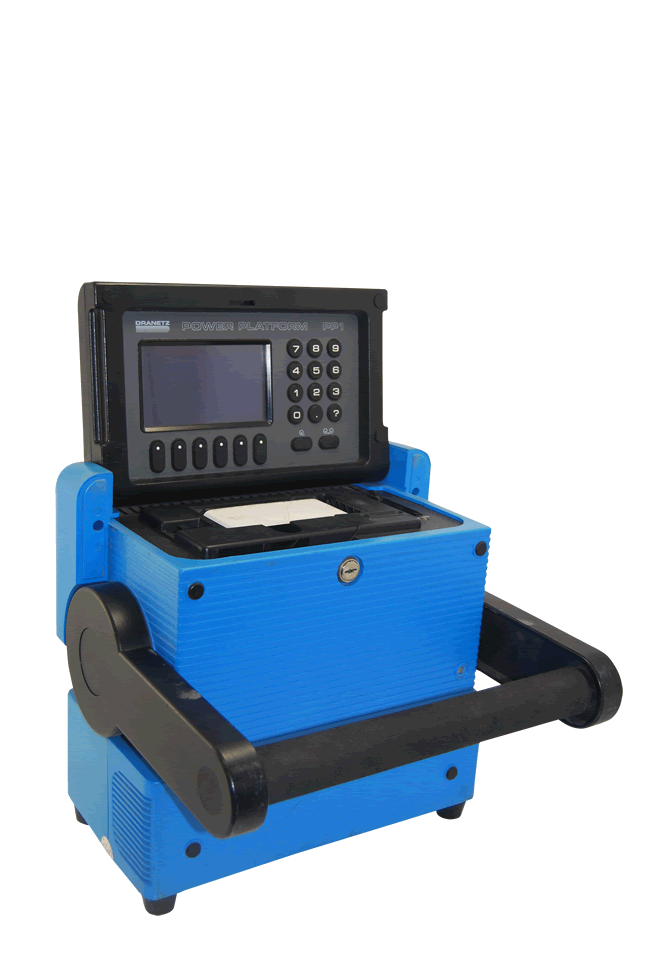

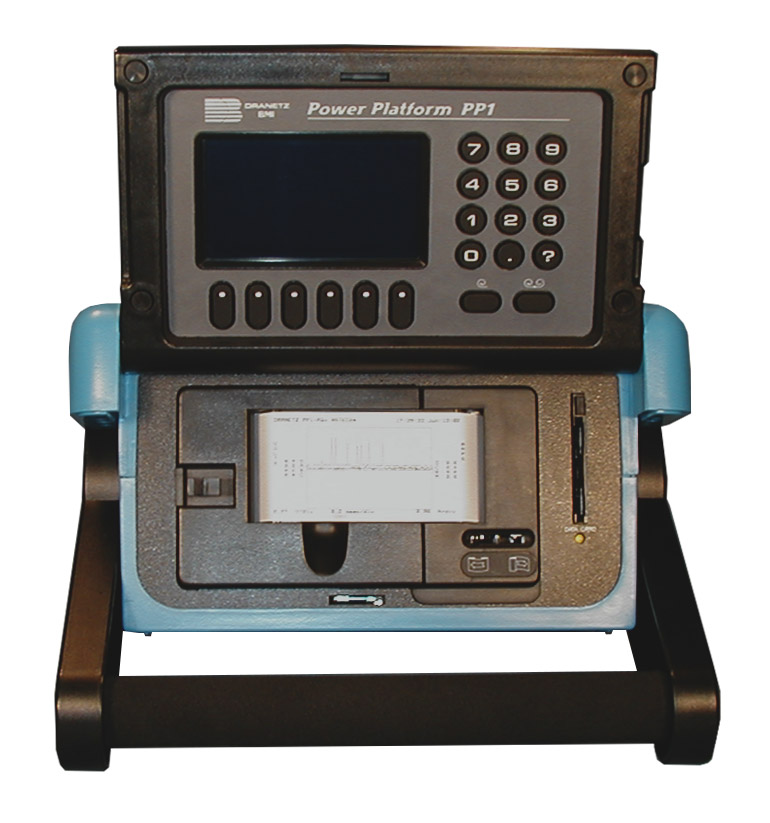

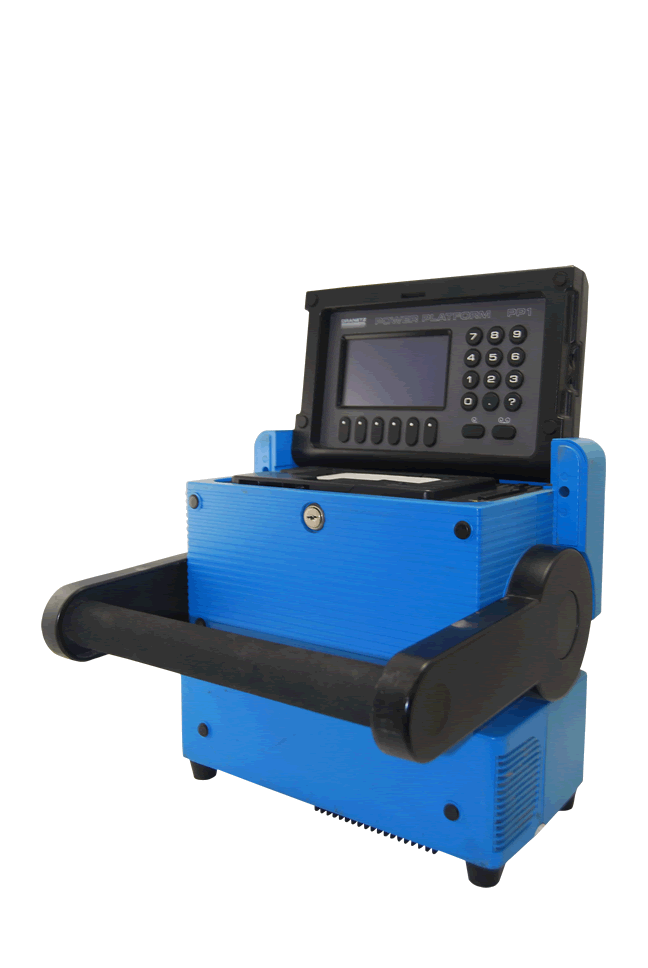

Dranetz PP1/P 3- Phase Power Platform

Dranetz PP1/P 3- Phase Power Platform
Enlarge Image
Dranetz PP1/P 3- Phase Power Platform Dranetz PP1/P 3- Phase Power Platform Dranetz PP1/P 3- Phase Power Platform
Dranetz PP1
Request Quote Print Page
Manual

Features:

  • Portable Package
  • Eight Channel, 4 Voltage and 4 Current
  • Easy Start for automated set-ups (TASKCards PQPlus and Flicker)
  • Scope Mode
  • Meter Mode
  • TASKCard Operating System Technology
  • Menu Driven Operation
  • RS-232 Serial Interface
  • Waveform Capture (TASKCard PQPlus)
  • Simultaneous Channel Capture
  • Time Plot Any Monitored Parameter
  • Integral PC Memory Card Interface



Specifications:

Voltage Measurements 4 fully differential channels 10-600Vrms Accuracy: ±1% reading ±0.05% full scale
Voltage Transients 50-6000Vpk 1 microsecond minimum duration Accuracy: ±10% reading ±1% full scale Requires TASKCard PQPlus
Current Measurements 4 fully independent current channels 10 - 200% of full-scale current probe rating Accuracy: ±1% reading ±0.05% full scale (at fundamental, plus current probe accuracy)
Current Transients 10-300% CT full scale except Chan D 2-200% CT full scale 1 microsecond minimum duration Accuracy: ±10% reading ±1% full scale plus probe Requires TASKCard PQPlus
Frequency Fundamental range 30 - 450 Hz
Accuracy ±0.2% of reading
