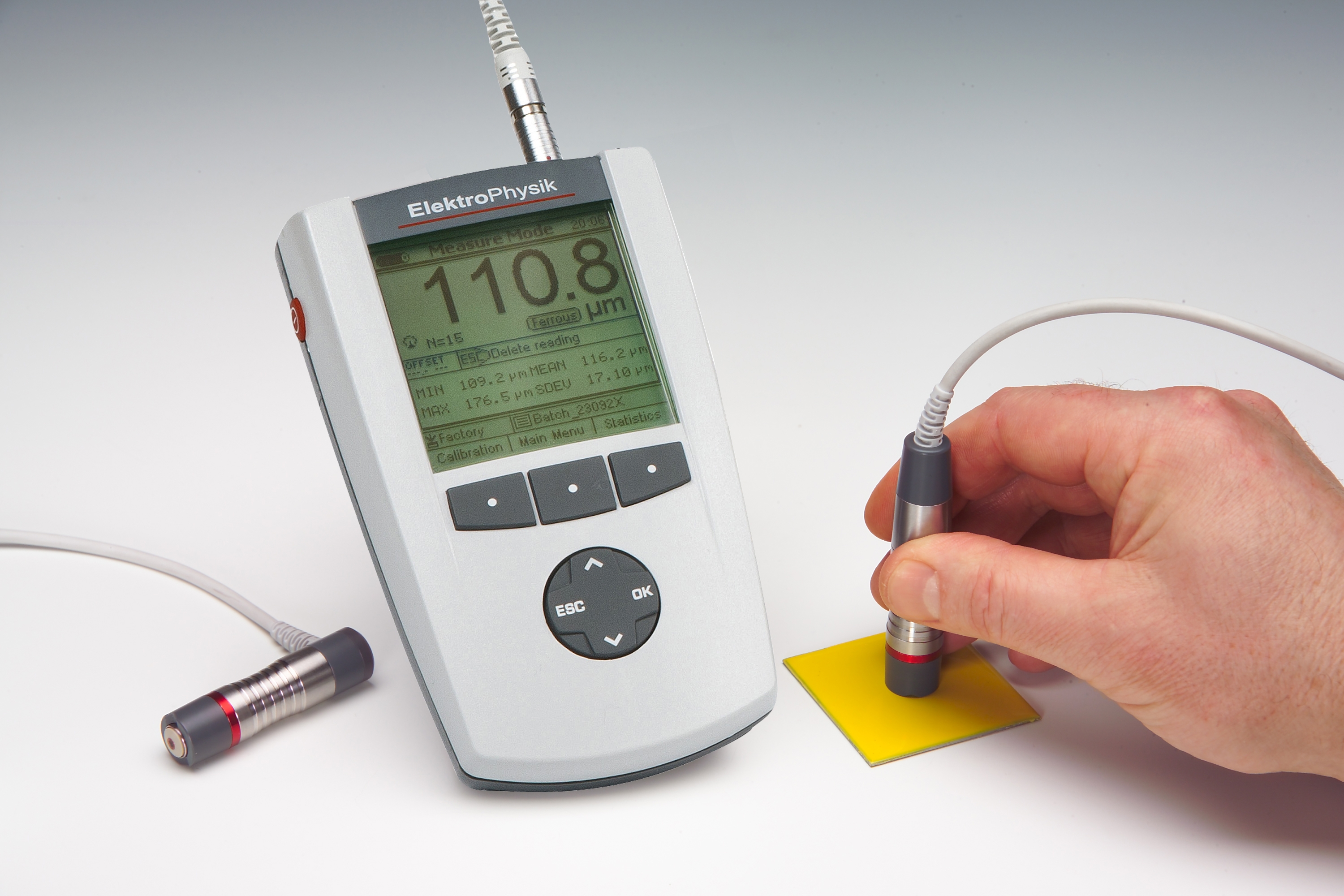

Image of Elektro Physik MiniTest 7400 FH Wall Thickness Gauge

ElektroPhysik

Elektro Physik MiniTest 7400 FH Wall Thickness Gauge

The Elektro Physik MiniTest 7400 FH Wall Thickness Gauge is a magnetic thickness gauge with a 24mm measuring range, 0.1µm resolution and ±1µm repeatability. Elektro Physik MiniTest 7400 FH thickness gauges are suited for the thickness measurement of non-magnetic materials such as glass, synthetic materials, stainless steel and composites, and also the measurement of complex component geometries. The Elektro Physik MiniTest 7400 FH's SIDSP sensor ensures high measuring precision and repeatability and compensates for temperature influences of the measuring environment and the measurement object. The sensors are equipped with carbide metal tips making them highly wear-resistant.


Sensor Model Measuring Ranges Measuring Tolerance
FH 4 0…2.0 mm with 1.5 mm steel ball
0…3.5 mm with 2.5 mm steel ball
0…6.0 mm with 4 mm steel ball
0…2.0 mm: ± (3 μm + 1 % of reading)
0…3.5 mm: ± (5 μm + 1 % of reading)
0…6.0 mm: ± (10 μm + 1 % of reading)
FH 10 0…4.0 mm with 2.5 mm steel ball
0…7.0 mm with 4.0 mm steel ball
0…10.0 mm with 6.0 mm steel ball
0…13.0 mm with 9.0 mm steel ball
0…4.0 mm: ± (5 μm + 1 % of reading)
0…7.0 mm: ± (10 μm + 1 % of reading)
0…10.0 mm: ± (20 μm + 1 % of reading)
0…13.0 mm: ± (20 μm + 1 % of reading)
FH 10M 0…16.0 mm with 4.0 mm magnetic ball
0…24.0 mm with 6.0 mm magnetic ball
0…16.0 mm: ± (40 μm + 2 % of reading)
0…24.0 mm: ± (60 μm + 2 % of reading)

Product Info
Low range resolution 0.1 μm (FH 4) / 0.2 μm (FH 10)
Repeatability Better than ± (1 μm + 0.5% of reading)
Measuring principle Magnetostatic
Logging rate 1, 2, 5, 10, 20 readings per second (selectable)
Data memory 240,000 values (limited to 100,000 values on MiniTest 7200 FH)
Calibration modes Factory, Zero, Zero + up to 4 points
Measuring units metric (μm, mm), imperial (mils, inch)
Statistical charting Numeric, trend, and histogram (with MiniTest 7400 FH only)
Interfaces RS232 TTL + IrDA 1.0 + USB (via connection box)
Operating temperature –10 °C to +60 °C (Storage temperature: –20°C to +80°C)
Dimension/Weight 153 mm x 89 mm x 32 mm/310 g
6 in. x 3.5 in. x 1.3 in./11 oz. (Gauge with batteries only)
Power supply 4 x AA (LR06) batteries, or optional power unit (90 – 240 V~/48 – 62 Hz)
  • Precision in wall thickness measurement of up to 24 mm
  • Greater accuracy and repeatability by the sensor-integrated digital signal processing (SIDSP)
  • High resolution upwards of 0.1 µm
  • 20 readings per second
  • Wear-resistant sensors with hardened sensor tips
  • Recording and statistical evaluation of up to 240,000 readings
  • Display of minimum and maximum values
  • Menu-driven operator interface
  • Context-oriented online help
  • RS 232 TTL and IrDa 1.0 interfaces


SKU: ELPH-FH7400
