Espec EGNX12-6NWL Global-N Chamber

The Espec EGNX12-6NWL Global-N Chamber is a 12 cubic foot temperature cycling chamber designed with heavy-duty casters with adjustable feet for leveling units. The EGNX-12-6NWL model has an interior dimension of 23.6" x 29.2" x 33.5" (600 x 740 x 850 mm) and provides a non-metallic thermal break around the doorframe for thermal integrity. The Espec EGNX12-6NWL Global-N Chamber has a temperature range of -70 to 180°C (-94 to 350°F) and a humidity range of 10% - 95% RH.

Product Info Related Compliance Standards Related Products

Interior Volume	12 cu. ft. 380 Liters
Interior Dimensions (W x D x H)	23.6" x 29.2" x 33.5" 600 x 740 x 850 mm
Exterior Dimensions (W x D x H)	35" x 83" x 70" 889 x 2098 x 1768 mm
Temperature Range	-70 to 180°C -94 to 350°F

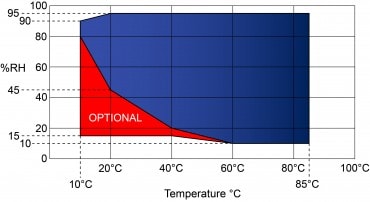

Humidity Range (see chart for detail)	10% - 95% RH
Average Change Rate (lower with 50Hz power)	14°C/min heating 11°C/min cooling -40 to 85°C (Empty)
Power	460V, 40A or 380/415V, 45A
Water-cooling Peak Demand (ask for details)	14 GPM
Maximum Sound Level (1 meter away)	65 dBA
Air Flow	500 CFM
Refrigeration System	Cascade 6hp Scroll

P-300 touch-screen programmer with USB port
High performance, reliable Copeland Scroll compressors
Lower sound levels, even for air-cooled models (click on model numbers to see specs)
One 4" (100mm) diameter cable port with flexible silicone plug
Heavy-duty casters with adjustable feet for leveling unit
Refrigeration gauges and hinged service panels for easy maintenance
Non-metallic thermal break around the doorframe for thermal integrity
Dew tray on the door to catch drips when opened
Adjustable stainless steel shelf with heavy-duty support rails, supports 100 lb.

SKU: ESPE-EGNX12-PKG01
