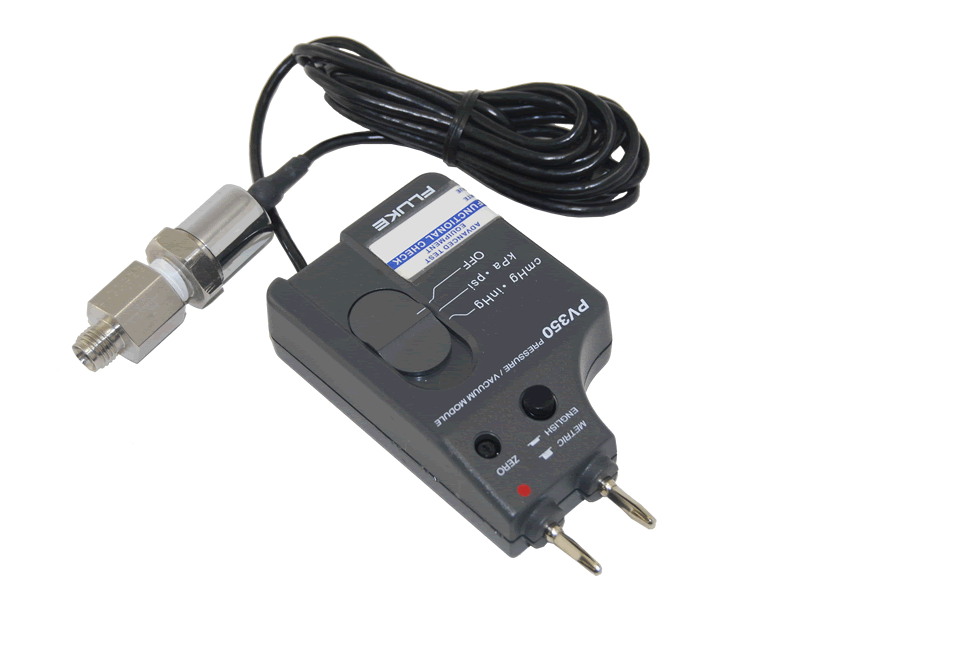

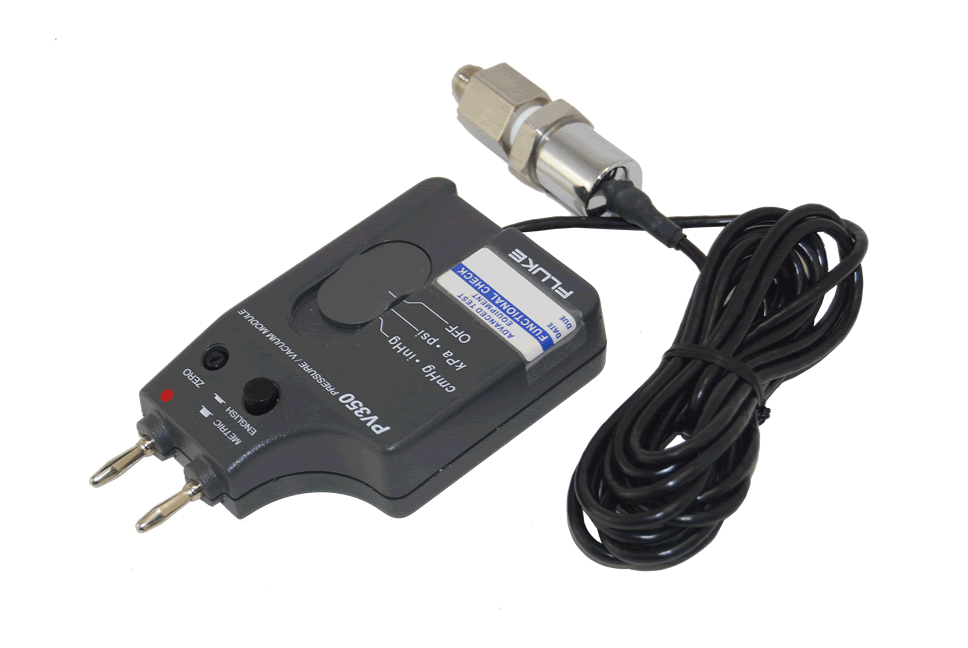

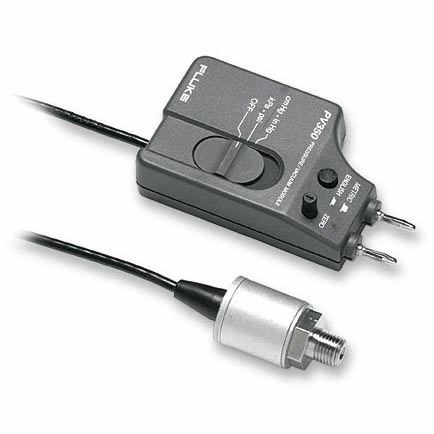

Fluke PV350 Pressure Vacuum Transducer Module

Fluke PV350 Pressure Vacuum Transducer Module
Enlarge Image
Fluke PV350 Pressure Vacuum Transducer Module Fluke PV350 Pressure Vacuum Transducer Module Fluke PV350 Pressure Vacuum Transducer Module
Request Quote Print Page
Manual

The PV350 Pressure/Vacuum Transducer Module (the module) measures gauge pressure; the difference between atmospheric (barometric) pressure and the pressure (or vacuum) applied to the pressure port on the transducer. It then converts that measurement to 1mV dc per unit. A module and a high-performance digital multimeter (DMM) with min/max function become a datalogger capable of measuring peak high and peak low.


Specifications:

Pressure Range 0.5-350 psig (3.447-2413 kPa)
Vacuum Range 0-29.9 in-Hg (0-76 cm-Hg)
Output 1 mV per unit (psi, kPa, cm-Hg or in-Hg)
Meter Impedance 10MΩ
Burst Pressure 1000 psi
Fitting 1/4" NPT
