Fujikura FSM-60S Fusion Splicer Kit
Enlarge Image

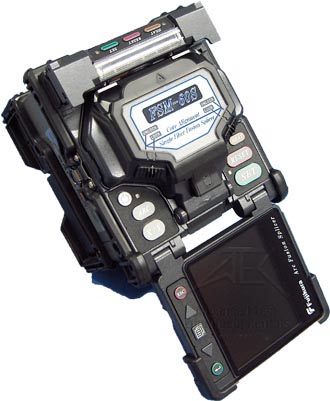

Fujikura (AFL Telecommunications) FSM-60S
FSM-60S Datasheet Specifications
The Fujikura FSM-60S has been replaced by the Fujikura FSM-70S.

View the FSM-70S

The Fujikura FSM-60S Fusion Splicer Kit sets the standard for core alignment fusion splicers. The FSM-60S is the fastest field splicer available, and can complete a splice and tube heat in atotal of 30 seconds. Important features include the smallest size and weight in the industry and the legendary ruggedness Fujikura provides. The FSM-60S also includes user friendly features such as calibration-free arc adjustments (with AUTO splice mode), automatic fiber type identification and reduced operational steps. The Fujikara FSM-60S also offers increased flexibility for various splicing tasks with user-selectable front and back monitor positioning.
Fujikura (AFL Telecommunications) FSM-60S Features
  • Highly durable – designed for tough environments
  • World’s most compact & lightest of its class
  • Core alignment with auto-fiber identification (PAS)
  • 9 sec. splice time & 30 sec. tube-heat time
  • Auto-start tube heater
  • Optional fiber clamping methods
  • Splice image capture facility
  • Software upgrade via Internet
  • Includes multi-function worktable
Fujikura (AFL Telecommunications) FSM-60S Specs
Parameter Value
Fiber Splicing Capability SM, MM, NZ-DS, DS, and other single mode fibers including ITU-T G.657 fibers
Splice Loss 0.02dB with SM fiber, 0.01dB with MM, and 0.04dB with DS and 0.044dB NZ-DS fiber (all results typical)
Return Loss >60dB
Fusion Splices/Battery Charge

BTR-08: 160 cycles (splice / tube heat)

Viewing Method

Two CMOS cameras and 4.1” color LCD monitor

Applicable protection sleeve 60mm, 40mm and Fujikura FPS01 series
Operating Condition

0 to 5,000m above sea level, 0 to 95%RH and -10 to 50 degC and up to 15m/s wind velocity, respectively

Operating Temperature -40°C to +80°C
Attenuation Capabilit Programmable from 1dB up to 15dB
Splice Data Storage 2000 splice data records
Splice Modes Up to 60 pre-programmed, 40 user programmable (100 total)
Splice Protection SleeveHeater Modes Up to 20 pre-programmed, 10 user programmable (30 (total)
