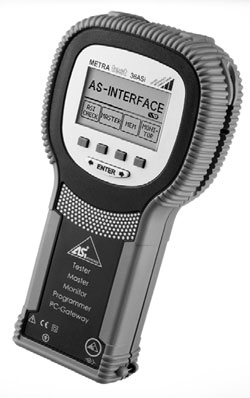

Gossen Metrawatt Metratest 36ASi AS Interface System Tester

Rent Gossen Metrawatt Metratest 36ASi AS Interface System Tester
Enlarge Image
Request Quote Print Page
Datasheet
The Gossen Metrawatt Metratest 36ASi AS Interface System Tester is a device for testing, addressing and programming actuator-sensor interface systems (AS-i). For service applications in AS-i systems and networks, and for retrofitting input/output modules with parallel wiring in AS-i systems. The METRAtest 36A is used for testing the AS interface bus system and its individual components (AS-i slaves) in accordance with the expanded AS interface specification, version 2.1. Beyond this, the device can be used as a PC gateway for programming purposes, and as a master. Completed testing of the AS interface can be documented with the help of PC software.

Features:


  • PC-like operation with menu and function buttons
  • Measurement of physical bus data
  • Diagnosis system recognizes reversed polarity, overload, transmission errors, the failure of slaves and slaves with identical addresses
  • Can be used as master within the AS-i system
  • Programming and parameters configuration of AS-i slaves
  • PC gateway function
