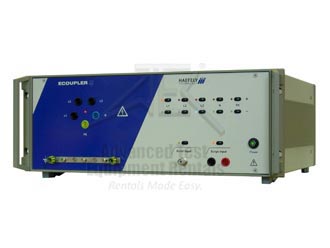

Haefely ECOUPLER4 Three-Phase Coupling / Decoupling Network

Haefely ECOUPLER4 Three-Phase Coupling / Decoupling Network
Enlarge Image
Request Quote Print Page
Datasheet Specifications



The ECOUPLER 4 is an ultra-compact coupling and decoupling network for burst and surge coupling onto three-phase power lines. ECOUPLER 4 can be controlled manually from its front panel or automatically from the PC, using the EMVCheck software enclosed with the ECOMPACT 4.


The ECOUPLER 4 is very simple to use, and therefore even first time of infrequent users may operate the unit quickly and easily. The ECOUPLER 4 conforms to the recent editions of the relevant IEC and EN basic standards for surge and burst testing.



Haefely ECOUPLER4 Features:

  • Two different test impulses
  • Combination wave 1.2/50us - 8/20us up to 4.2kV
  • Burst 5/50ns up to 4.2kV



Haefely ECOUPLER4 Benefits:

  • Multi-purpose - Two basic immunity tests combined in a single economical package for maximum flexibility.
  • Quick and Simple - One touch operation and simple automation of test routines streamlines the test procedure.
  • Test Reporting - Included Windows software automatically documents test parameters and results.



Haefely ECOUPLER4 Application:

Full compliance and Pre-Compliance testing to a wide variety of transient immunity standards:

  • IEC 61000-4-4 Edition 1 & Edition 2
  • IEC 61000-4-5 Edition 1 & Edition 2
