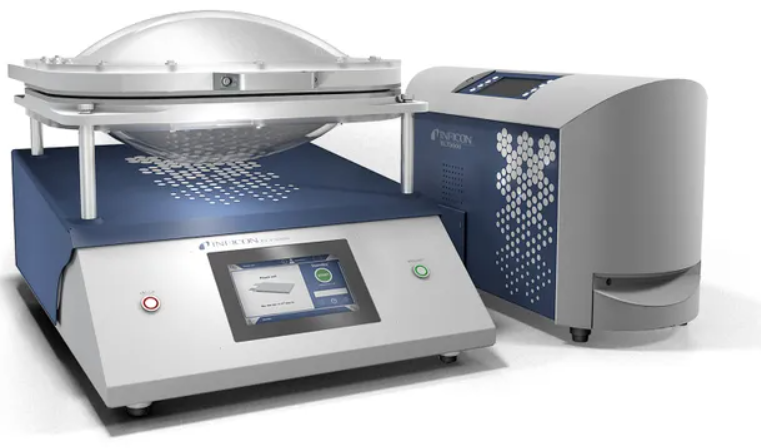

Image of Inficon ELT3000 Battery Leak Detector

INFICON

Inficon ELT3000 Battery Leak Detector

The Inficon ELT3000 Battery Leak Detector is a user-friendly leak tester with a control unit and a gas analysis unit. The Inficon ELT3000’s smallest detectable leak rate is 1 x 10-6 mbar I/s. With an operating temperature of 10°C to 40°C (50°F to 104°F), multiple language options, and more, the ELT3000 is the ideal product for a variety of testing requirements.

Product Info
Model ELT3000
Smallest detectable leak rate 1 x 10-6 mbar I/s (Helium equivalent leak rate)
Measuring range 3 decades
Operating temperature 10°C to 40°C (50°F to 104°F)
Detection sensor Quadrupole mass spectrometer (2 cathodes)
Ingress protection class IP20
Time until ready for measurement <180 s
Dimensions Dimensions Gas Detection (B x H x T):
610 mm x 300 mm x 380 mm (24 in x 12 in x 15 in)
Dimensions Control Unit (B x H x T):
700 mm x 540 mm x 250 mm (27.6 in x 13.7 in x 6.4 in)
Weight 65kg (144.5 lb.)
Languages English, German, Korean, Chinese, Japanese
  • Quality through innovative-end-of-line testing
  • Enables unmatched high measurement reliability
  • High sensitivity allows production of safe and long lasting lithium-ion battery cells
  • Non-destructive leak testing also for soft pouch cells
  • ​Flexible chamber protects soft cells during the test under vacuum
  • ​For easy integration into automated production processes
  • High throughput due to simultaneous leak testing of multiple battery cells at a time
  • ​Fieldbus interfaces

Markets

  • Automotive
  • 3C  (Computing, Communication, Consumer Electronics Industry)

Manual or automated leak testing of lithium-ion battery cells

  • Soft pouch cells
  • Prismatic cells
  • Round cells
  • Coin cells / button cells


SKU: INFI-ELT3000
