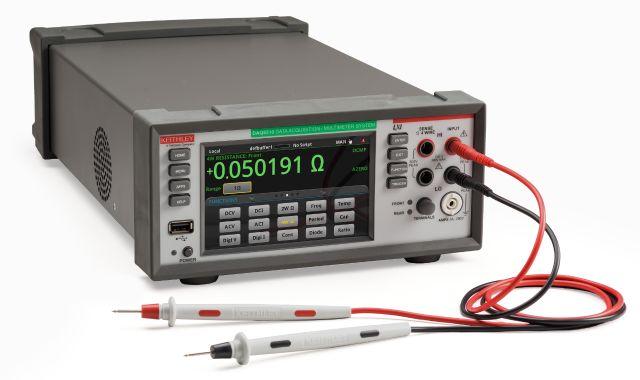

Keithley DAQ6510 Data Acquisition and Logging, Multimeter System
The Keithley DAQ6510 Data Acquisition and Logging Multimeter System combines the functions of a data logger and a multimeter, offering high measurement accuracy and flexibility. It features a 5-inch color touchscreen for easy operation, supports up to 80 channels, and provides advanced triggering capabilities. With built-in data logging and multiple connectivity options like LAN, USB, and GPIB, it ensures seamless integration into automated test setups. Ideal for R&D, manufacturing, and environmental monitoring, this system delivers reliable data acquisition and analysis.
| Voltage | 100 nV - 1000 V with 0.0025% basic DCV accuracy |
| Current | 10 pA - 3A |
| Resistance | 1 µΩ - 120 MΩ |
| Capacitance | 0.1 pF - 100 µF |
| Power Supply | 100 V, 120 V, 220 V, and 240 V (±10%) |
| Maximum Power Consumption | 65 VA |
| Typical Power Consumption | 30 VA |

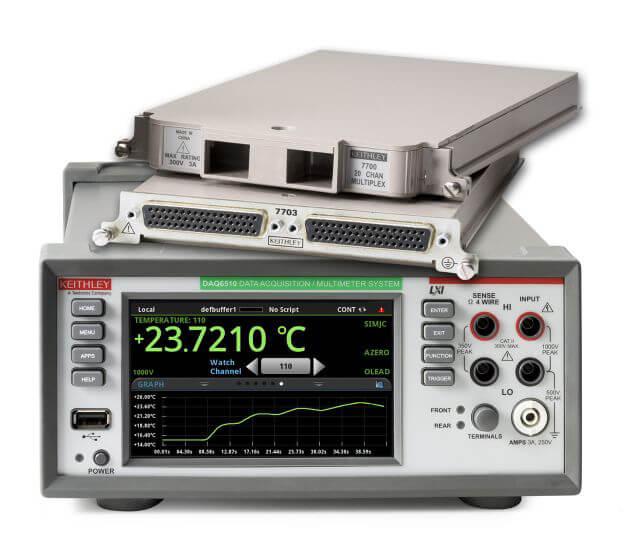

- 20 channels of analog input (w/automatic CJC) for generalpurpose measurements
- 16 channels of digital output
- 2 analog outputs (±12 V, 5 mA)
- 300 V, 1 A capacity; 60 W, 125 VA maximum
- Configurable as two independent banks of multiplexers
- Relay closures stored in onboard memory
SKU: KEIT-DAQ6510
