Maccor MTC-020 Temperature Chamber
The Maccor MTC-020 is a temperature chamber for benchtop or rack-mount use, supporting temperature-dependent testing with automated test systems. It offers a temperature range of +10°C to +100°C, ±0.5°C uniformity and accuracy, and accommodates up to 16 electrical connections per chamber. The chamber can be controlled via software, stacked in a 19” rack cabinet, and features a large cable portal and optional interface boards.
| Chambers per PC | 1 – 32 |
| Temperature Range | +10°C ... +100°C (Heat/Cool) |
| Temperature Uniformity | ±0.5°C |
| Temperature Accuracy | ±0.5°C |
| AC Input | 120 VAC, 60 Hz or 230 VAC, 50 Hz |
| External Dimensions | 13½" H x 17½" W x 43" D (34.29 x 44.45 x 109.22 cm) |
| Internal Dimensions | 9" H x 13" W x 13¼" D (22.86 x 33.02 x 33.66 cm) |
| Electrical Feedthroughs | 16 channels per chamber |
| Optional Rack Cabinet | Standard 19” industrial rack (up to 4 chambers) |
| Cable Portal | 3" (76 mm) diameter |
| Interior | Non-conducting powder coated |
| Interface Boards (Optional) | PowerPole or Phoenix connectors, plug-in interface |
- Addressable Chamber Controller’s allows multiple chambers to be controlled on a single Maccor test system.
- Chamber Temperature Set Points are set directly from Maccor’s Test System Software as a step in the test procedure.
- Compact design allows the chamber to easily fit onto a bench top.
- If bench top and floor space are limited the 7U height and compact design makes it possible to stack up to four chambers in a standard 19” industrial rack cabinet.

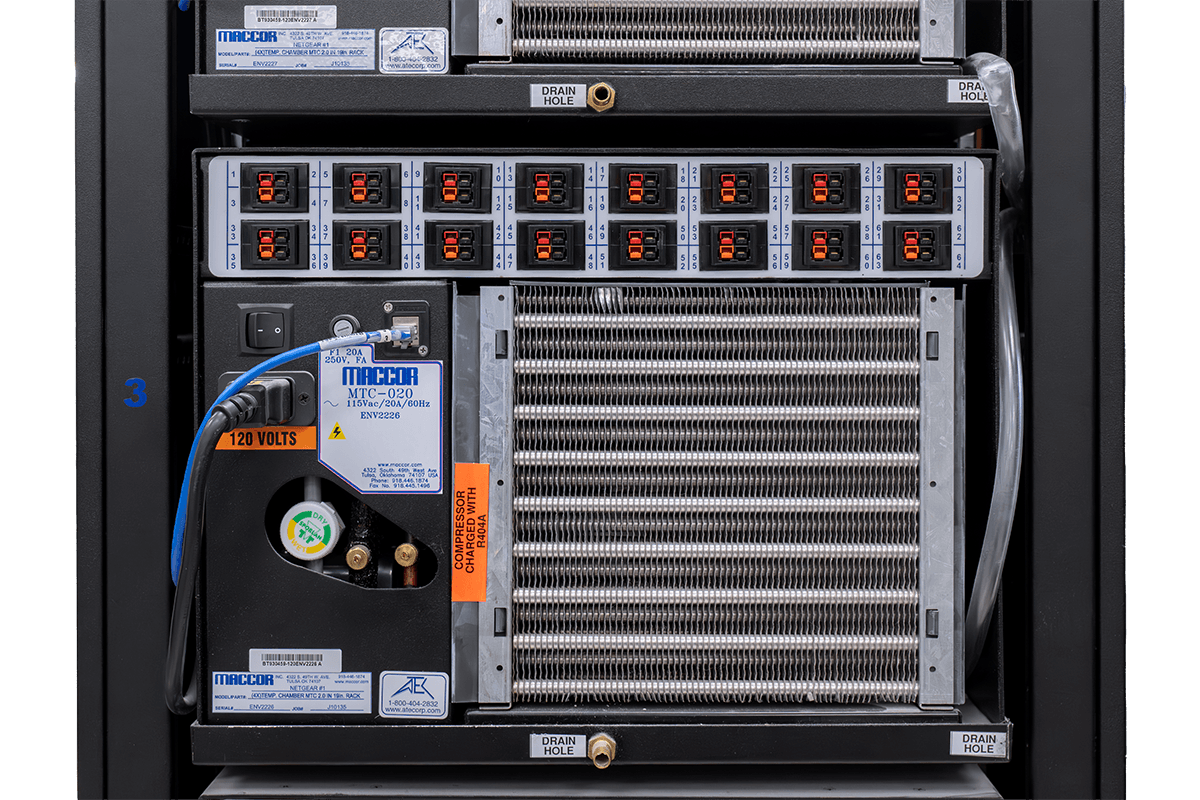

- Electrical feedthroughs allow electrical connections inside chamber while maintaining a maximum seal.

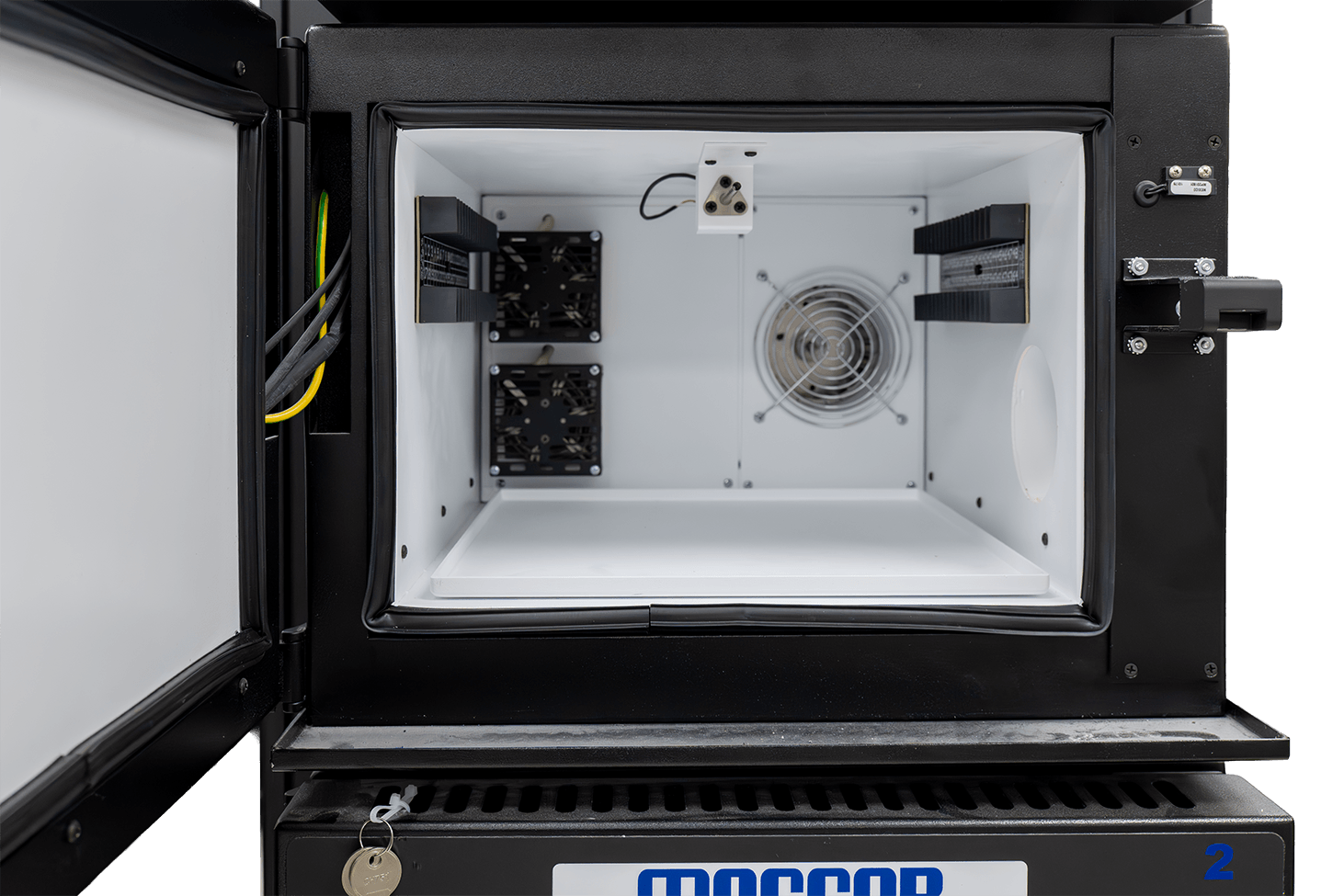

- Optional interface board can be installed inside chamber to allow plug-in interface which can accommodate Maccor’s molded Kelvin and coin cell holders.
- Large 3” (76 mm) diameter cable portal on right side of chamber.
- Non-Conducting Powder Coated Interior.
SKU: MACC-SERIES4000-CHAMBER
