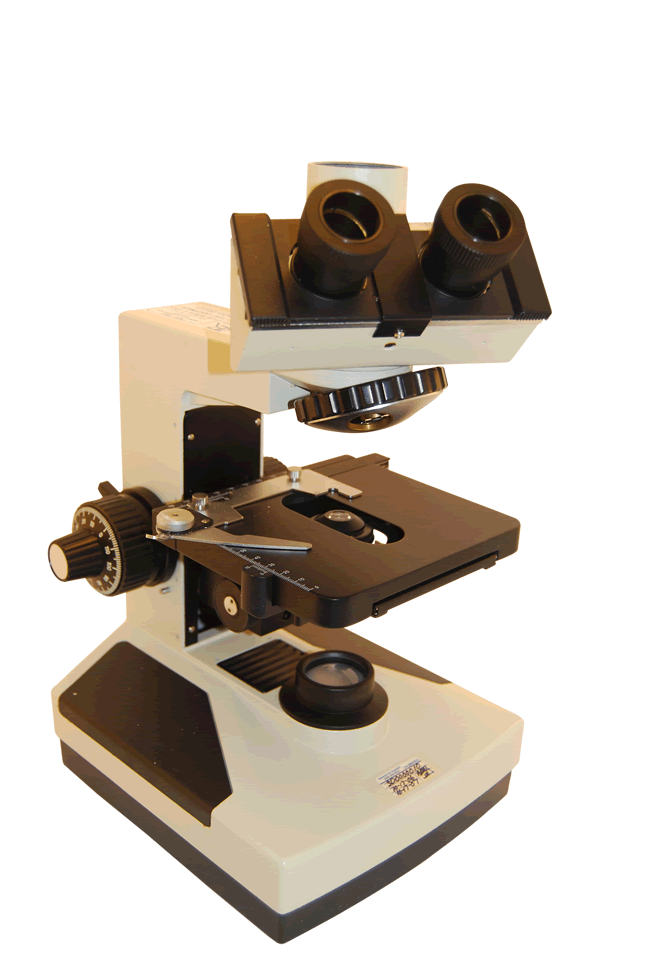

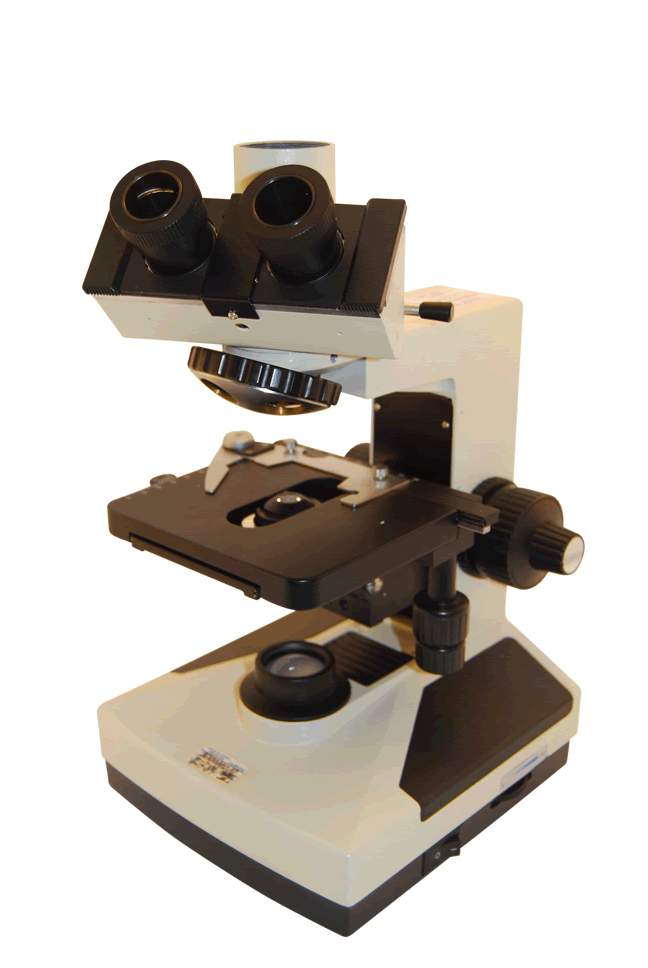

Image of Phenix XSP-10 Series Biological Microscope 40X - 1600X

Phenix

Phenix XSP-10 Series Biological Microscope 40X - 1600X

40X - 1600X Biological Microscope

Product Info
Total Magnification:

40X-1600X


Objective:

1. Achromatic: 4X, 10X, 25X(R), 40X(R), 100X(R)oil
2. Plan: 4X, 10X, 40X(R), 100X(R)oil
3. Achromatic: 4X, 10X(R), 40X(R), 100X(R)oil


Plan-Eyepieces:

P10X, P16X


Lens Tube:

Binocular 45 degree, Inclined Tube with 55-75mm Pupils Distance


Illumination:

Buil-in System 12V/20W, Tungsten Halogen Lamp


Condensers:

Abbe Type NA=1.25,With Iris Diaphram


Coaxial Focusing System:

1. Focus Range: 30mm
2. The Min. value of Fine Focus Knob: 0.002mm
With Adjustment of Elasticity And Installation of Random Spacing To Go With Focusing System


Working Stage:

1. Area:140x140mm
2. Moving Range of 70x50mm in X-Y Directions



SKU: PHEN-XSP10
