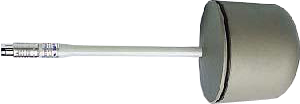

PMM HP102 H Field Probe

PMM HP102 H Field Probe
Enlarge Image
Request Quote Print Page
Brochure

Features:


  • Frequency range: 30 - 1000 MHz
  • Range: 0.01 - 20 A / m
  • Overload> 40 A / m
  • Dynamics> 60 dB
  • Resolution: 1 mA / m
  • Sensitivity: 0.01 A / m
  • Applications: Population and workers occupationally exposed to RF


Specifications:


  • Absolute error @ 50 MHz and 2 A / m: + / - 1dB
  • Flatness (50 - 900 MHz): + / - 1 dB
  • Isotropic response: + / - 0.8 dB (typical + / - 0.5 dB @ 930 MHz)
  • E-field rejection> 20 dB
  • Error in temperature: 0.05 dB / ° C
  • Calibration: on E <sup>2</sup> PROM internal
  • Dimensions: length 317 mm, 58 mm diameter
  • Weight: 110 g
