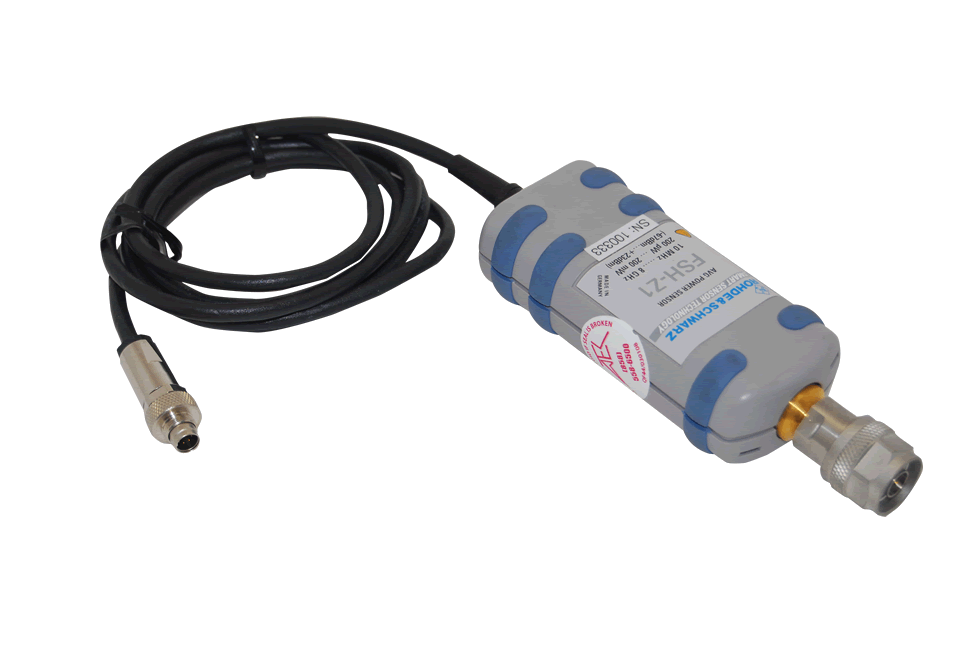

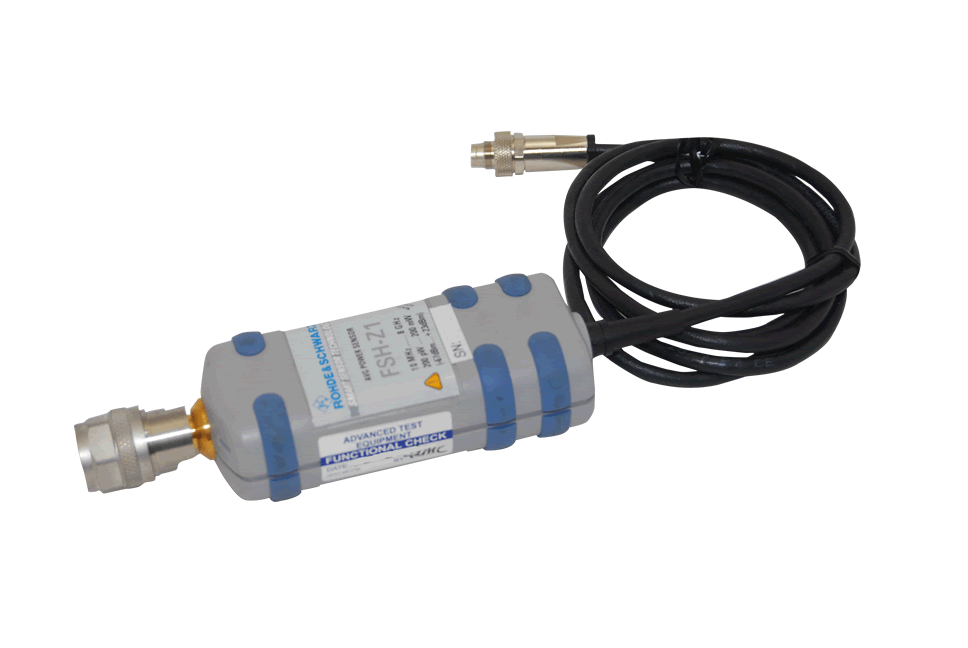

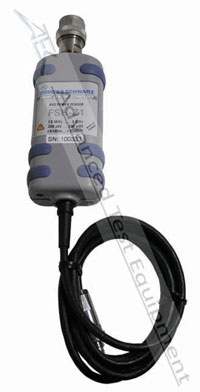

The Rohde & Schwarz FSH-Z1 power sensor is used with the R&S Handheld Spectrum Analyzer FSH3. The FSH-Z1 transforms the Rohde & Schwarz FSH3 into a high-precision RF power meter with a maximum frequency of 8 GHz to 18 GHz respectively.


Applications:

  • TDMA Power Measurements
  • Channel-Power Measurements
  • Field-Strength Measurements
  • Power Measurements up to 8 GHz/18 GHz



Specifications:

Frequency Range
10 MHz to 8 GHz
VSWR
10 MHz to 30 MHz <1.15
30 MHz to 2.4 GHz <1.13
2.4 GHz to 8 GHz <1.20
8 GHz to 18 GHz <1.25
Maximum Input Power
400 mW (+26 dBm), average power
1 W (+30 dBm), peak power (<10 µs, 1% duty cycle)
Measurement Range
200 pW to 200 mW (-67 dBm to +23 dBm)
Signal Weighting Average Power
  • Effect of Harmonics
<0.5% (0.02 dB) at harmonic ratio of 20 dB
  • Effect of Modulation
<1.5% (0.07 dB) for continuous digital modulation
Absolute measurement uncertainty (sine signals, no zero offset)
10 MHz to 8 GHz +15°C to +35°C <2.5% (0.11 dB)
0°C to +50°C <4.5% (0.19 dB)
8 GHz to 18 GHz +15°C to +35°C <3.5% (0.15 dB)
0°C to +50°C <5.2% (0.22 dB)
