Rohde & Schwarz UPSF2 Video Noise Meter

Rohde & Schwarz UPSF2 Video Noise Meter
Enlarge Image

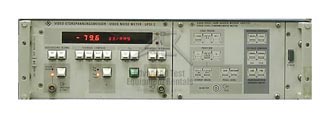

Rohde & Schwarz UPSF2
Request Quote Print Page
Manual
Video Noise Meter

Rohde & Schwarz UPSF2 Features
  • Instrument to determine noise voltage, weighted and unweighted
  • Automatic switch-over for 525-line or 625-line systems
  • Measurements are available in full-field or any test line with automatic or manual ranging and true RMS detection of video noise
  • Full field, spot, and line measurements in accordance with IEEE and CCIR
Rohde & Schwarz UPSF2 Specs
Frequency Range 40 Hz to 10 MHz
Operating Modes Full field and test line, internal or external synchronization
Measurement Range 0 dB to -90 dB
Test Signal Picture or composite video signal with or without test lines, 525 or 625 lines with automatic switchover
Rectification True RMS or peak-response measurement
Readout Digital, ±1 dB maximum error
