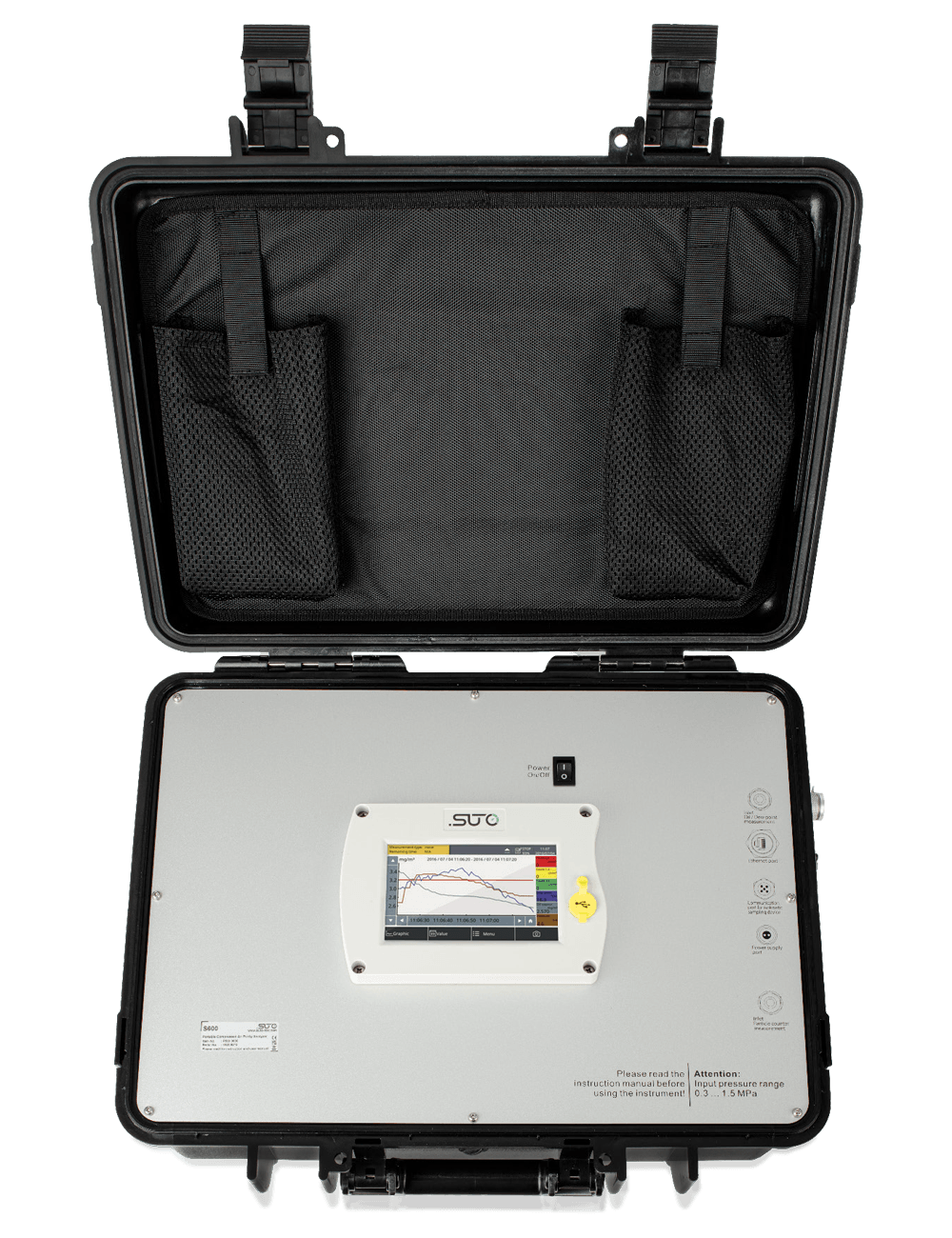

SUTO iTEC S600 Portable Compressed Air Purity Analyzer
The SUTO iTEC S600 is a compressed air purity analyzer designed for ISO 8573-1 compliance. It has a particle concentration range from 0.1 - 5.0 µm, dew point range of -100°C to +20°C Td, and oil vapor range of 0.001 - 5.000 mg/m³ in compressed air systems. The unit features built-in data logging, LTE/4G connectivity, and an integrated PDF report generator for real-time monitoring and audit documentation. Its compact, portable design makes it suitable for on-site air quality analysis in industrial and critical applications.
| Particle Measurement | 0.1 - 5.0 µm |
| Dew Point Range | -100°C ... +20°C Td |
| Oil Vapor Measurement | 0.001 - 5.000 mg/m³ |
| Pressure Measurement | 0.1 - 1.6 MPa (g) |
| Temperature Range | 0°C ... +50°C |
| Accuracy | ±2°C Td (Dew Point), ±5% (Oil Vapor) |
| Data Logging | Up to 3 million recorded datasets |
| Display | 5” touchscreen (800x480 px) |
| Connectivity | USB, LTE/4G, Ethernet (Modbus/TCP) |
| Power Supply | 100-240 VAC, 50/60 Hz input |
| Weight | 9.8 kg |
| Protection Class | IP54 |
- Portable solution to measure all quality parameters
- High-resolution 5" color touch screen
- PDF Report generator for ISO 8573-1 audits
- Isokinetic sampling device to conform with ISO
- Software guided measurement for high precision
- Ultra-portable and compact design makes it unique
- USB or optional 4G/LTE interface for data transfer
- For Compressed Air, Nitrogen N2, Carbon dioxide CO2
- ISO 8573-1 | Contaminants and purity classes
SKU: SUTO-S600-PKG01
