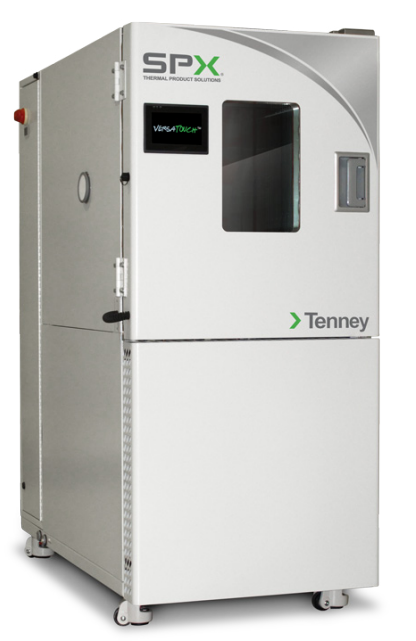

Tenney C10RC 10 Cubic Feet Temperature Cycling Test Chamber

Rent Tenney C10RC 10 Cubic Feet Temperature Cycling Test Chamber
Enlarge Image
Rent Tenney C10RC 10 Cubic Feet Temperature Cycling Test Chamber Rent Tenney C10RC 10 Cubic Feet Temperature Cycling Test Chamber Rent Tenney C10RC 10 Cubic Feet Temperature Cycling Test Chamber Rent Tenney C10RC 10 Cubic Feet Temperature Cycling Test Chamber
Request Quote Print Page
Datasheet

Features:


  • VersaTouchTM controller
  • Ethernet port
  • USB port
  • Heated viewing glass window
  • Chamber light
  • Two 3” cable ports
  • Solid state humidity sensor
  • Platinum RTD temperature sensor
  • Heavy duty leveling casters
  • Nichrome wire air heater
  • Solid state pressure switches
  • Thermal expansion valves
  • FM approved safety OTP
  • Backup safety thermal cutoff
  • Main electrical disconnect LOTO
  • Chamber vent port
  • One shelf standard
  • UL 508A compliant

Specifications:


Cooling Rate (empty chamber) Min (C/Min)
180C to -65C: 72 (3.4)
125C to -40C: 37 (4.5)
85C to -40C: 30 (4.1)
ambient to -40C: 15 (4.3)
ambient to -68C: 40 (2.3)
Heating Rate (empty chamber) Min (C/Min)
-65C to 180C: 42 (5.9)
-40C to 125C: 28 (6)
-40C to 85C: 21 (6)
-34C to ambient: 10 (6.2)
-68C to ambient: 15 (6.2)
