Teseq Emipak Plus Emission Testing System
Discontinued

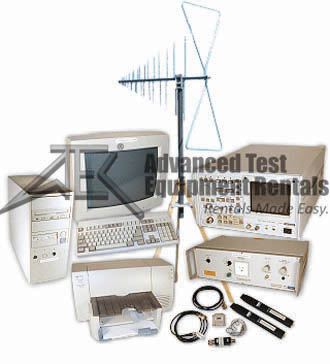

Emipak Plus System Consists of:
- Advantest R4131D Spectrum Analyzer, 10kHz-3.5GHz
- Chase UPA6192 30MHz-2GHz BiLog Antenna
- Chase MN2050B LISN Single Phase 10A, 9kHz-30MHz
- NFPS1 Near Field Probe set, 9kHz-1GHz
- Personal Computer (CPU, Monitor & HP Color Printer) with Chase EPS9980 Emission Measuring Software and Manual.
- Frequency Range: 9kHz-30MHz
- Max Current: 10A Cont., 16A Peak
- Max Voltage: 250V AC & DC
- Network Impedance / Inductance: 50Ω / 50µH+5 Ω
- Lines / Phases: 1 / 2
NFPS1 Near Field Probe Set Applications:
- Locate emission hot-spots
- Check mechanical screening performance
- Isolate faulty components
SKU: SCHA-EMIPAK-1
