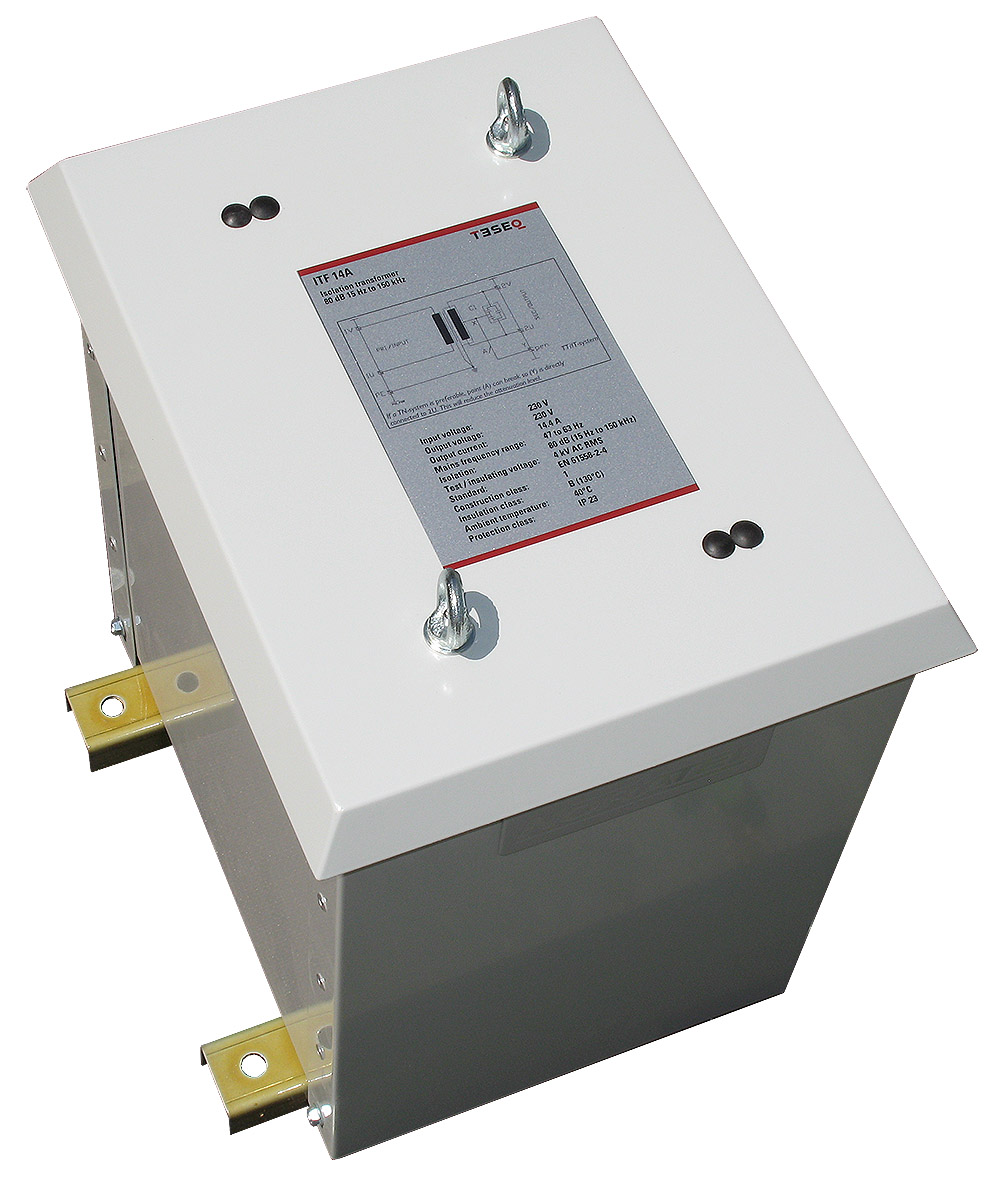

Teseq ITF 14A Isolation Transformer 60 dB

Larger

Documents

Datasheet

The Teseq ITF 14A provides the 60 dB decoupling as required in IEC / EN 61000-4-16. The ITF is placed between coupling network and mains. It can be used for a mains frequency in the range 47 to 63 Hz.

Input Voltage:	230 V
Output Voltage:	230 V
Output Current:	14.4 A
Mains Frequency Range:	47 to 63 Hz
Isolation:	60 dB (15 Hz to 150 kHz)
Test/Insulating Voltage:	4 kV AC RMS
Standard:	EN 61558-2-19
Construction Class:	1
Insulation Class:	B (130°C)
Ambient Temperature:	40°C
Protection Class:	IP 20
Mains Connection (Input):	Schuko connector with 2.5 m cable
Output Socket:	Schuko (IFT 14: 2x Schuko)
